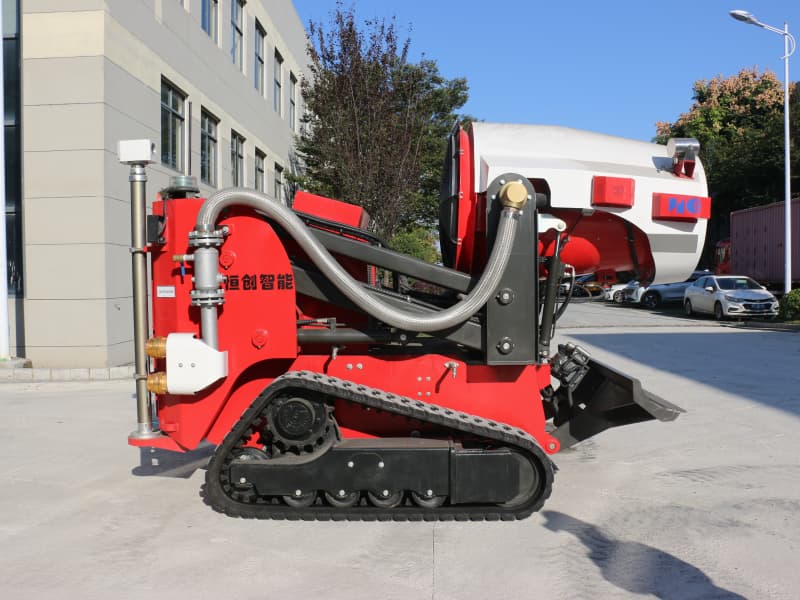

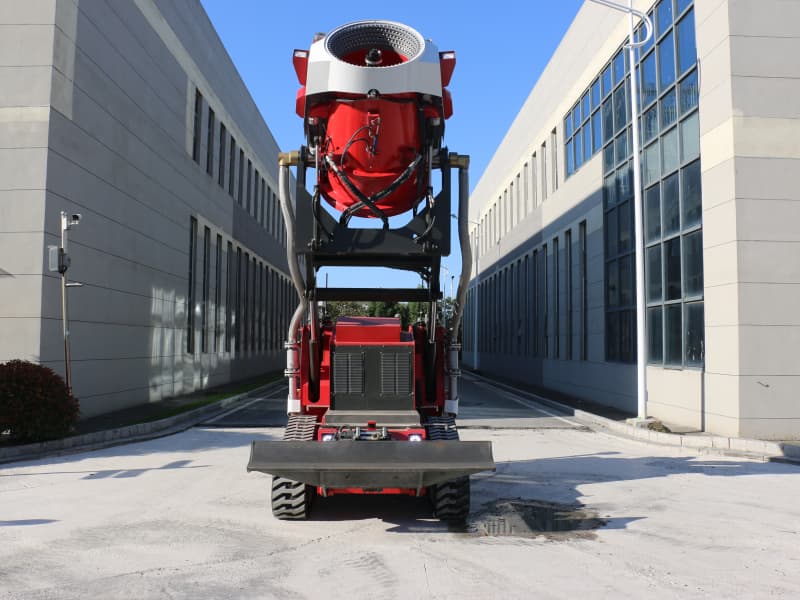

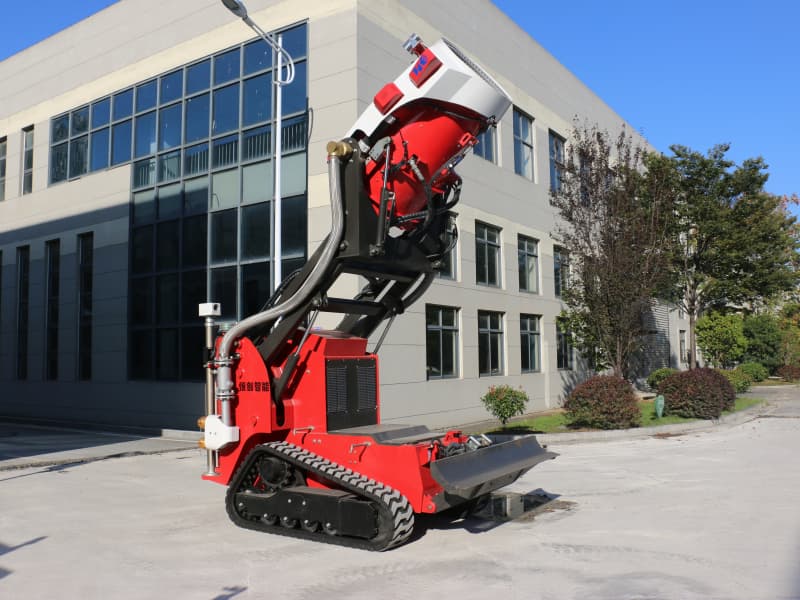

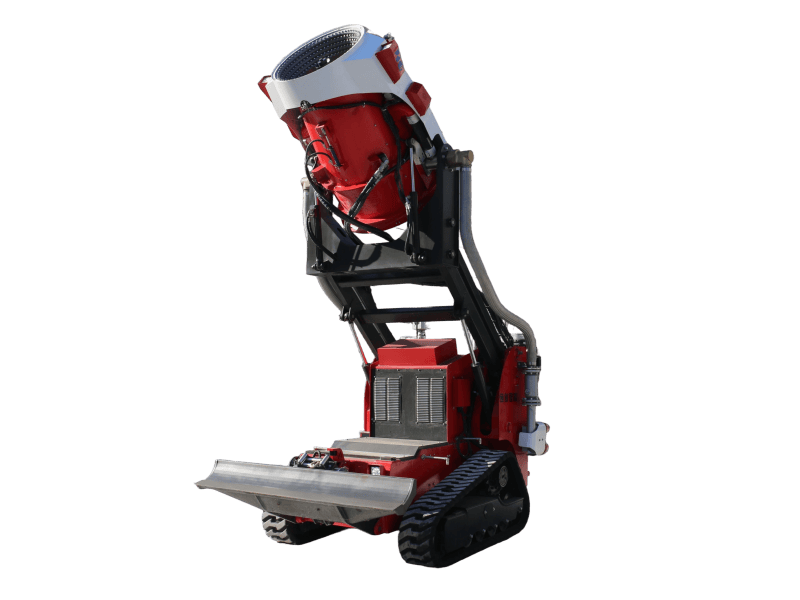

High Fog Cannon Smoke exhaust Detection Firefighting Robot
Item No :
High Fog Cannon- Smoke exhaust- Detection Firefighting Robot
Weight :
5,500 kg
Specifications :
3500 mm × 2200 mm × 2500 mm
Water cannon range :
1000 m
CATEGORIES
how can we help you
You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.
Contact usThis firefighting robot integrates multiple functions such as fire extinguishing, smoke exhaust, detection, cooling, dust removal, and obstacle clearance, and replaces rescue personnel to enter harsh and complex environments that are difficult for people to access, such as oil depots, ports, refineries, chemical industrial parks, mines, tunnels, subways, forests, and large factory buildings to perform fire fighting, smoke exhaust, detection and rescue tasks.
Key Features :
Fire Extinguishing Range
The dual-arm elevating system supports multi-dimensional operation modes such as water spraying, smoke exhaust, mist spraying, foam spraying, and air supply. The heights of the mist cannon, water cannon can be adjusted for expanding their output range according to different environments.
Fire Extinguishing Effect
The anti-clogging cannon head is equipped with a fine water mist nozzle and a spray-type turbo fan.It is also designed with a large spray coverage area, strong heat absorption from the fire source, stable multi-dimensional smoke exhaust and air supply capabilities, which enable it to handle sudden fire rescue scenarios skillfully.
Intelligent Remote Control
It adopts anti-interference wireless communication technology for long-distance transmission and is equipped with an intelligent data image transmission and monitoring analysis command platform.
Practical Application
The retractable lifting pan-tilt can conduct multi-element environmental gas detection and analysis of toxic, harmful, flammable, VOC, temperature, and humidity at the accident site. Driven by hydraulics and equipped with a hydraulic winch and a push shovel obstacle-clearing device, it can perform obstacle clearing, towing, and other rescue tasks in complex and harsh environments.
| Performance | |
| Machine weight | ≤5500 kg |
| Dimensions | ≤3500*2200*2500 mm |
| Transport speed | ≥2.5 m/s |
| Flow rate | ≥80 L/s |
| Continuous working time | ≥10 h |
| Remote control distance | ≥1000 m |
| Towing ability | ≥30KN |
| Rated air exahust volume | ≥70000m³/h |
| Range of gas detection | 8+（Customizable） |
| Grade ability | ≥50 % |
| Range | ≥85 m |
| Two-arm lifting speed | ≥85mm/s |
