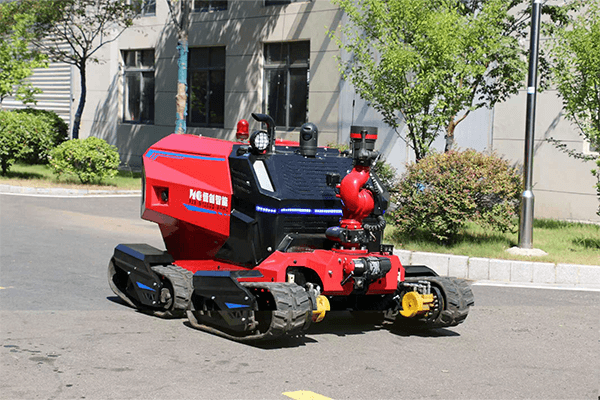

The RXR-M150GD is an all-terrain four-wheel drive fire fighting robot developed by Hitech. It is mainly used for fire fighting in complex terrain and places that are difficult for personnel and conventional fire trucks to access. It can also be used for fire fighting in subway stations, tunnels, large span spaces, oil depots, refineries, underground facilities and warehouses.
Item No :
RXR-M150GDWeight :
2000 kgSpecifications :
2320 mm*1600 mm*1440 mmClimbing inclination :
42° (Ramp/Stairway)Water cannon range :
Water: 100 m, Foam: 98 mTractive force :
16 kNRXR-M150GD four-wheel fire fighting robot is an all-terrain fire fighting robot developed by Hitech. It is mainly used for fire fighting in complex terrain inaccessible to personnel. The fire fighting robot features powerful functions, wide working range, great fire extinguishing power, strong reconnaissance and protection ability. The robot is equipped with a hydraulic system, water cannons, foam cannons, and can extinguish different fires. The robot adopts remote control operation, has strong mobility, and can carry out rapid fire fighting operations. It is suitable for extinguishing fires in complex environments such as highway tunnels, subway tunnels, large-span factory buildings, and oil depots.
Key Features:
Application scenarios:
| Performance | |
| Machine weight | 2000 kg |
| Transport speed | 0-10.8km/h |
| Climbing inclination, max. | 42°(Ramp/Stairway) |
| Ground clearance | 250 mm |
| Obstacle climbing height | 500 mm |
| Tilting stability angle | 30º |
| Video transmission distance | 1000 m |
| Dynamical System | |
| Diesel Tank Capacity | 40 L |
| Tractive force | 16 kN |
| Braking distance | 0.3 m |
| Fire extinguishing system | |
| Water cannon flow rate, max. | Water: 150 L/s |
| Water cannon range | Water: 100 m, |
| Working pressure | 1.2 Mpa |
| Spray mode | Columnar or atomized, continuously adjustable |
| Water cannon depression angle | -25º |
| Water cannon elevation angle | 90º |
| Water cannon rotation angle | 180º |
