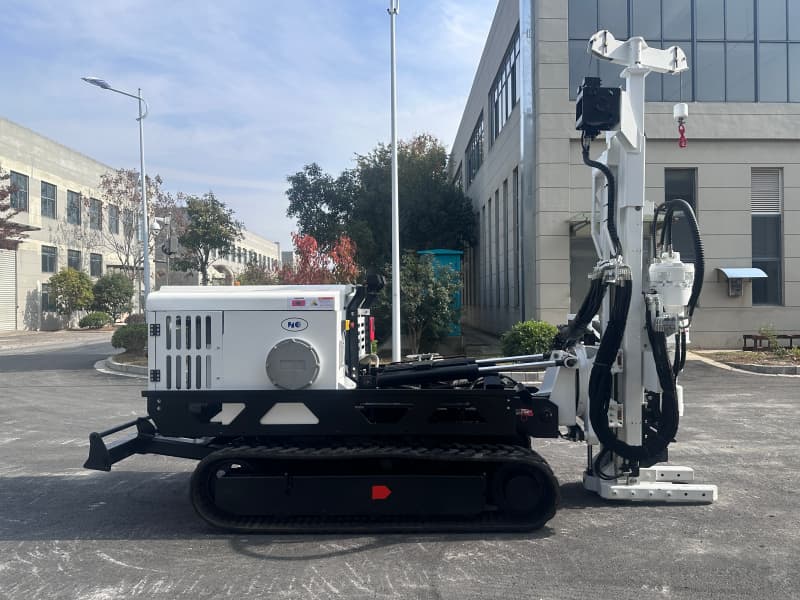

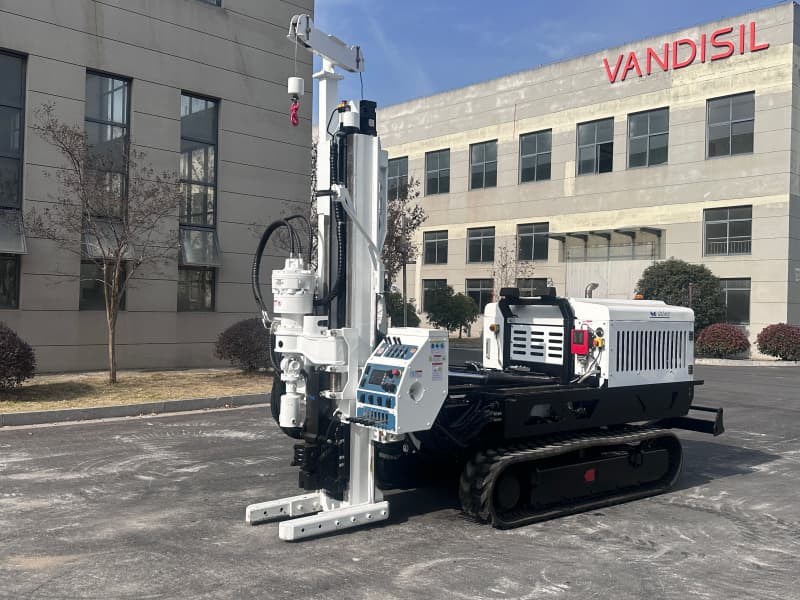

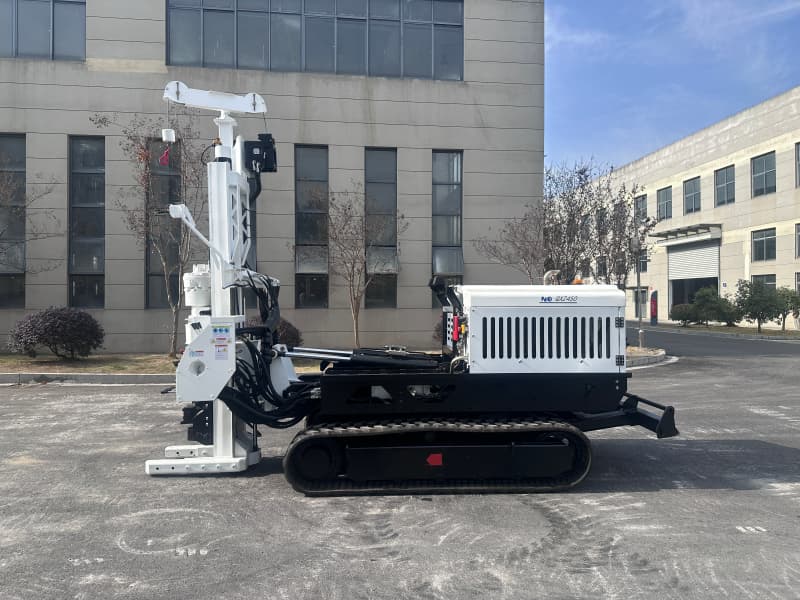

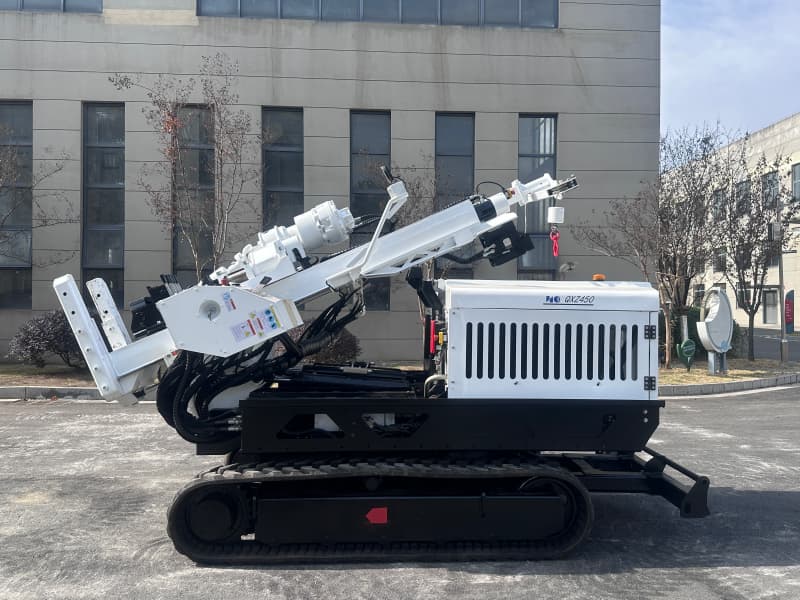

HCZ450 Direct Push SOIL DRILLING RIG

The tracked direct push soil drilling rig is a sturdy, compactly structured device specially designed for narrow spaces and rugged terrain construction. Due to the direct push drilling method, undisturbed soil samples can be taken. The drill tool design includes inner and outer tubes, so it has the characteristics of fast drilling speed, complete sampling, and high work efficiency. Due to its small size and light weight, it can walk on its own, so it is easy to transport and reach complex terrain.

Technical Features:

1. Direct push drilling and sampling.
2. No water is added and no rotation during drilling.
3. Sampling uses inner double-tube sampling, samples go directly into the inner sample tube to ensure no contamination of samples; equipped with leak-proof plugs and leak-proof connecting rods to form an overall conical drill bit pushed through the drill rod against the leak-proof plug, preventing sidewall soil samples from entering the sampling tube during drilling and causing contamination.
4. Can achieve 30 meters of sampling.

Applications:

• Geological exploration - Used for composite soil and soft rock geological exploration. It can obtain high-quality undisturbed soil samples for analysis of soil properties.
• Environmental monitoring - Used for collecting soil and groundwater samples at different depths to monitor potential environmental contamination. It can also install monitoring wells for long-term groundwater level and quality monitoring.
• Disaster monitoring - Used for installing monitoring equipment in landslide areas or seismic fault zones to monitor ground movement or groundwater changes.
• Geotechnical engineering exploration - Used for tasks such as site soil survey, pile foundation exploration, and liquefaction potential assessment. Undisturbed soil samples can be collected for laboratory tests to determine geotechnical parameters.
• Narrow working spaces - Suitable for working in confined areas where large drills cannot access, such as near buildings or in mountainous areas.
• Rugged mountain areas - Can navigate rough terrain and steep slopes where vehicle-mounted drills are difficult to deploy. The compact size and self-locomotion ability make it suitable for working in remote mountain locations.
• Underground injection test - Can be used for conducting underground injection tests for seepage and permeability studies. The double-tube sampling system prevents leakage of injected water, ensuring valid test results.
