Explosion-Proof Firefighting and Reconnaissance Robot
Item No :
Explosion-Proof Firefighting and Reconnaissance Robot
Weight :
550 kg
Specifications :
1520 mm × 990 mm × 1320 mm
Water cannon range :
85 m
CATEGORIES
how can we help you
You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

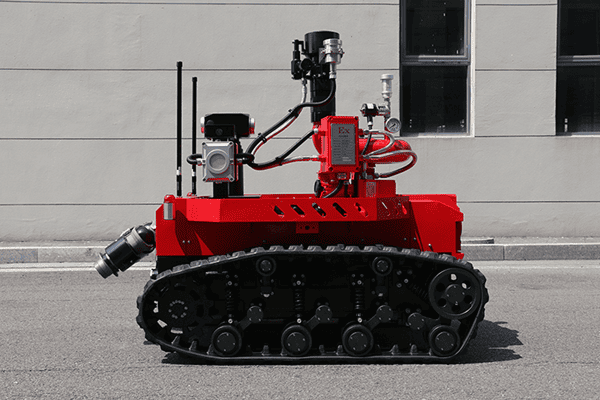

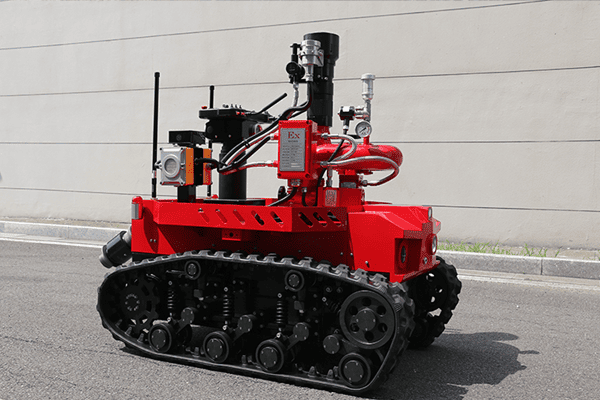

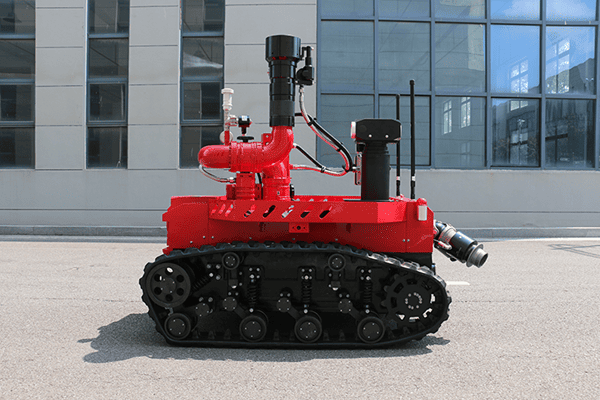

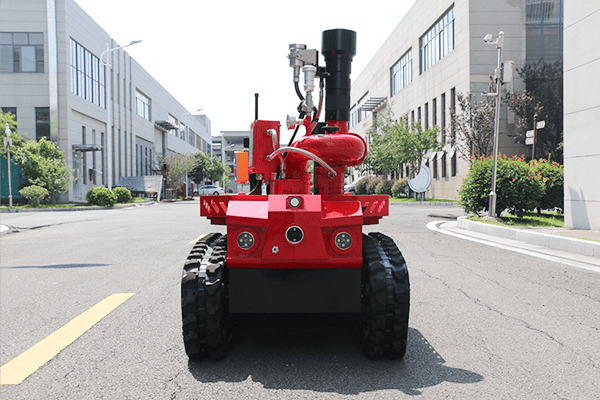

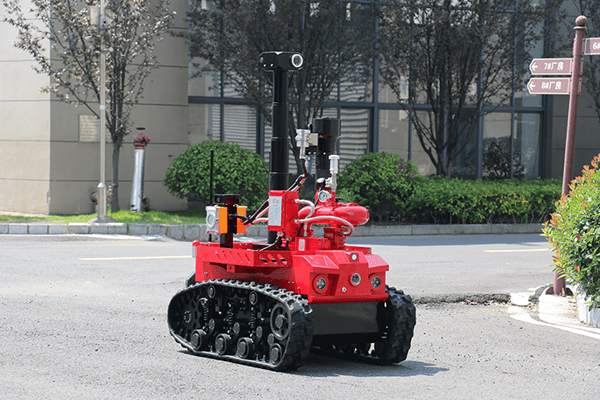

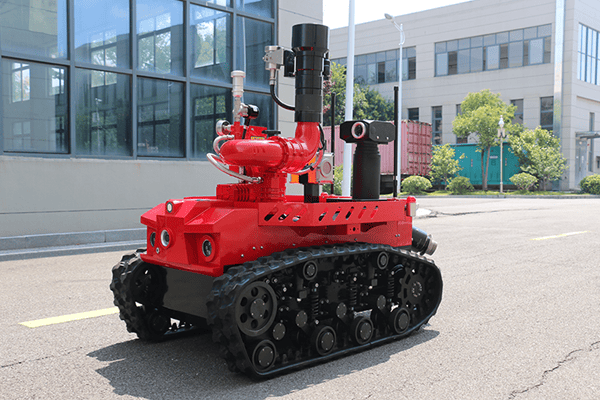

Contact usThe Firefighting robot consists of the main body, a fire monitor, a detection pan-tilt, and a handheld remote terminal. Firefighting robot can replace firefighters in entering hazardous scenes for rescue operations, such as those involving flammability, explosiveness, toxicity, oxygen deficiency, heavy smoke, large-scale fires, and petroleum & chemical plant fires. It addresses challenges like on-site firefighting and inadequate data collection at the source, enhancing rescue stability and reducing casualties.
Key Features :
Firefighting Capability ：

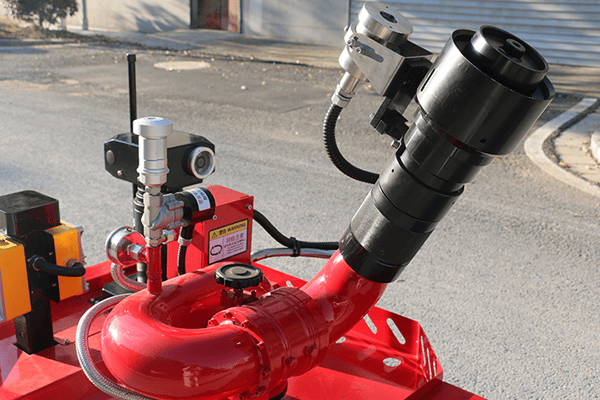

The unit is equipped with an imported water cannon capable of long-range discharge of water, mist, foam, and other agents. Its rotating gear fluid design features a large cannon head rotation angle, enabling automatic oscillation for high-efficiency and rapid response. The range is ≥80 meters, with free switching between multiple operational modes.
Scenario Mobility ：

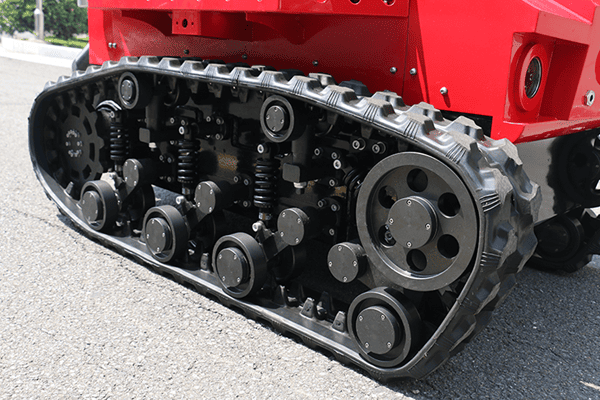

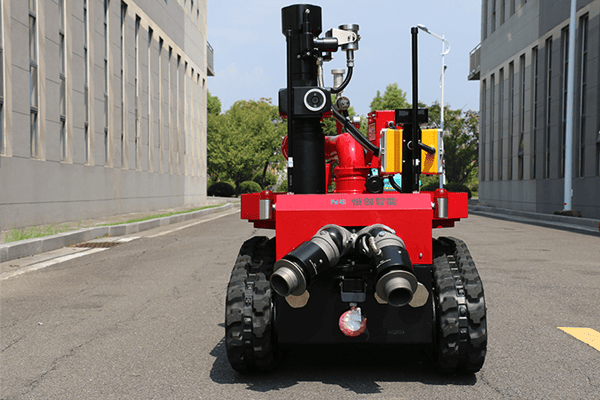

The vehicle is explosion-proof and waterproof, utilizing flame-retardant, high-temperature-resistant rubber tracks and a full metal frame. Powered by a 4.5kW high-power servo motor and a dual-spring shock absorption system, it offers high traction and can tow two DN80 hoses into the fire scene for internal operations.
Environmental Reconnaissance：

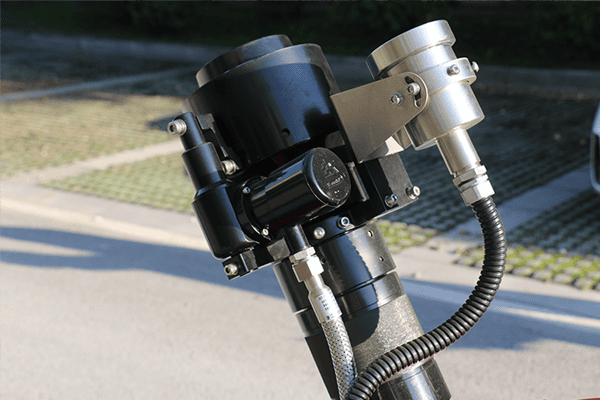

It carries a freely elevatable detection sensor pan-tilt, capable of comprehensive multi-environmental detection and analysis of various gases at the incident site, including toxic, harmful, combustible, VOC, as well as temperature, humidity, and radiant heat.
Anti-Interference Remote Control ：
Utilizing anti-interference wireless communication technology for long-distance transmission, it is equipped with an intelligent data and image transmission, monitoring, analysis, and command platform. Sensor data can be uploaded in real-time to the intelligent firefighting cloud platform system, allowing command personnel at the command center to analyze the situation and make decisions.
Intelligent Systems ：
Features an industrial-grade control system with a modular design.Equipped with intelligent systems including LiDAR obstacle avoidance, thermal imaging, autonomous obstacle avoidance, self-spraying cooling, and two-way audio transmission, ensuring robust and stable task completion.
Application:
- Subway Stations and Tunnel Fires
- Underground Facilities and Large Freight Yards
- Petrochemical Oil Depots and Refineries
- Large Logistics Warehouses and Industrial Plants
- Large-Span Factory Buildings and Civil Structures
- Any scenario where access is too dangerous for large fire trucks and personnel
| Performance | |
| Machine weight | 550 kg |
| Transport speed | 1.5 m/s |
| Operating Water Pressure Range | 1.2MPa |
| Obstacle climbing height | ≥300 mm |
| Overall Dimensions | Length 1520mm × Width 990mm × Height 1320mm |
| Video transmission distance | 1000 m |
| Diesel Tank Capacity | 40 L |
| Braking distance | 0.3 m |
| Flow Rate | ≥80 L/s |
| Water cannon range | 80 m |
| Continuous Operation Time | 15h |
| Gradeability | 83% |
