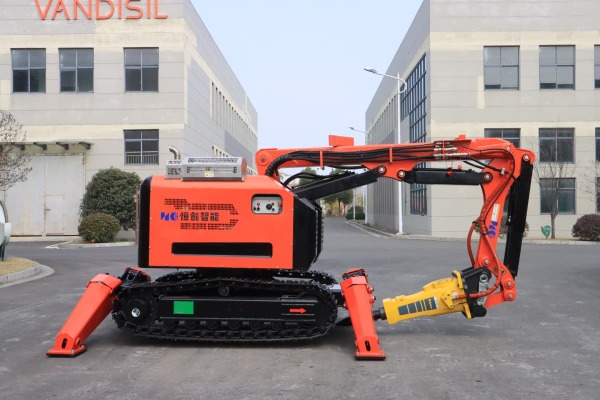

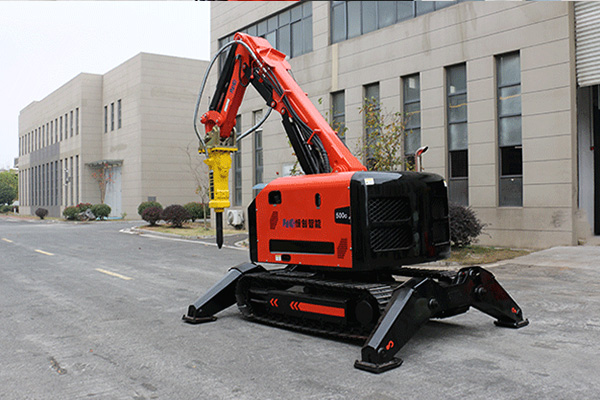

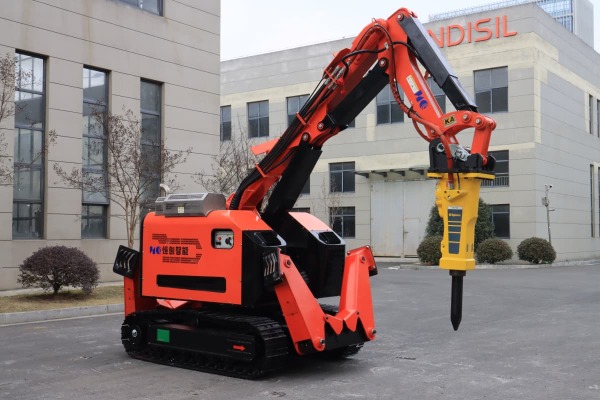

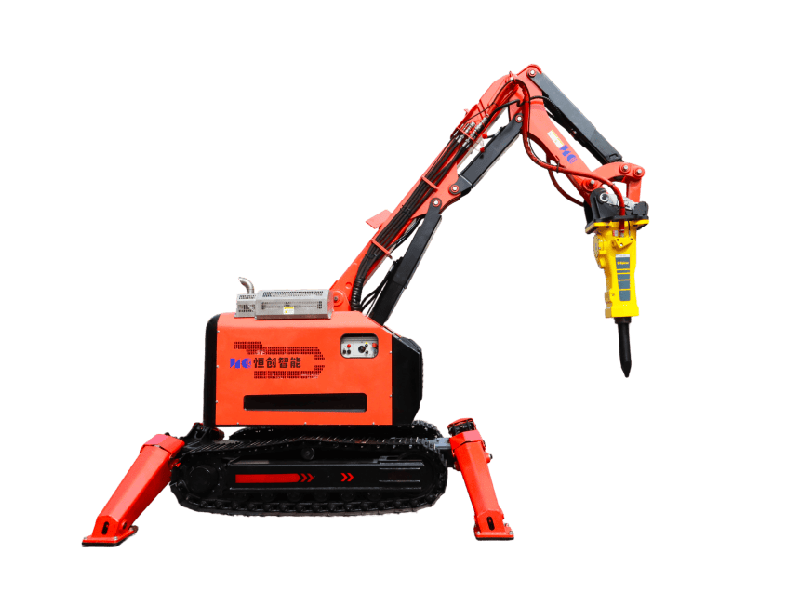

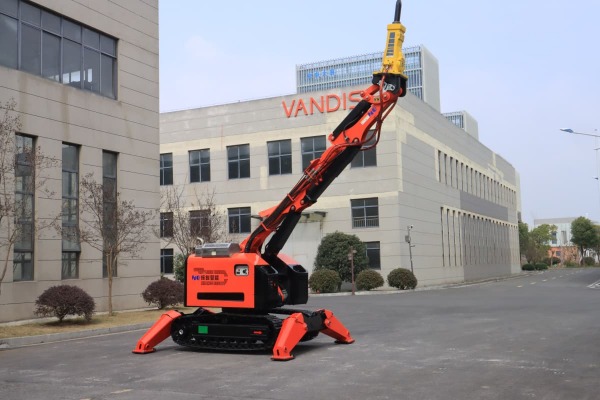

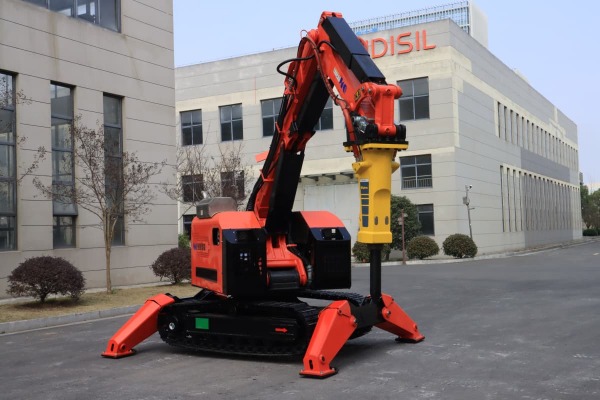

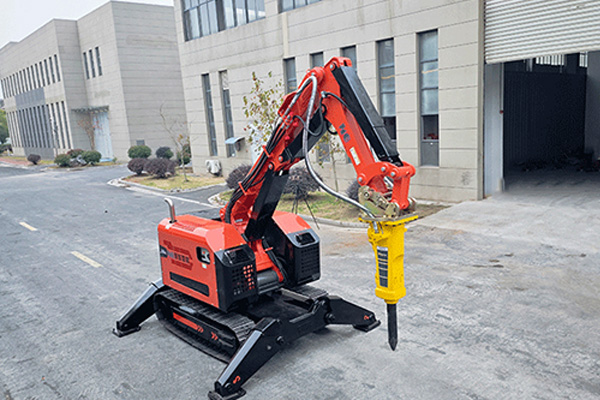

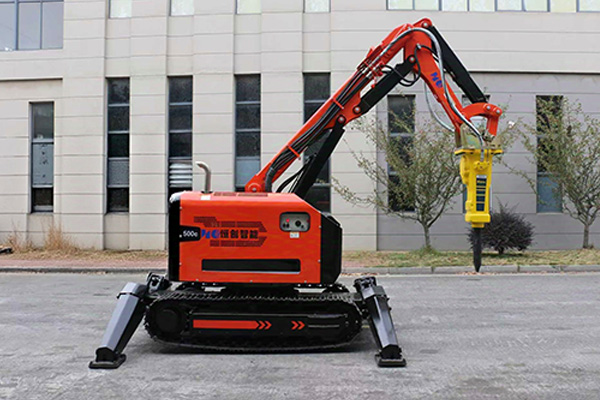

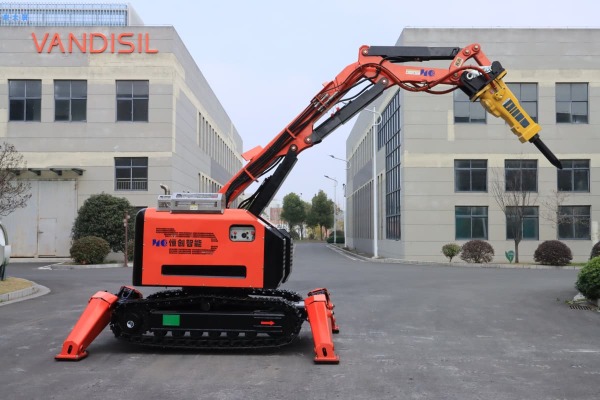

HCR500C Concrete Demolition Robot for Construction
Item No :
HCR500C
Weight :
6100 kg
Specifications :

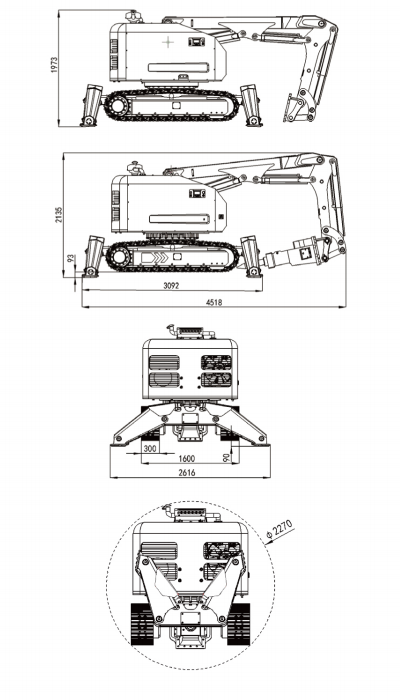

4518 mm × 1600 mm × 1973 mm
Power :
61 kW
Transport Package :
Steel bracket wooden cases
Warranty :
1 year
CATEGORIES
how can we help you
You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.
Contact usThe HCR500C remote demolition robot is the flagship model in Hitech Intelligent HCR series of hydraulic demolition robots. It is a heavy-duty remotely operated machine designed to take on high-risk demolition and dismantling work in hazardous conditions that pose dangers to human crews.
concrete demolition robot provides maximum productivity, safety and reliability for demanding applications like mining, tunneling, nuclear decommissioning and disaster response. The HCR500C allows operators to conduct precision demolition from up to 300 meters away, reducing exposure to hazards such as structural collapse, toxic materials, radiation and extreme heat.

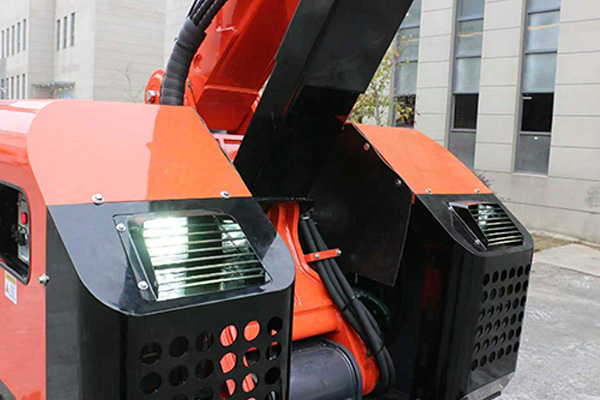

An intelligent and durable design makes the HCR500C suitable for both controlled demolition sites and unstructured disaster recovery operations. Fully sealed components and hazardous environment protections enable the robot to work where fires, fumes and instability prevent access for emergency responders. Quick tool changes and a modular build maximize uptime and allow the concrete demolition robot to clear disaster sites within hours after an incident.
Key Features:
- Massive hydraulics: Extreme power to demolish reinforced concrete and steel structures.
- Intelligent modular design: Works in extreme hazard conditions; rapid on-site assembly for disaster response.
- High mobility: All-terrain; travels at 2.3-3.6 km/h; reaches 7 m high, 360° rotation.
- Long reach: Dismantles multi-story buildings; accesses confined spaces.
- Advanced control: Efficient, precise remote operation up to 300m away; real-time diagnostics.
Main Applications:
- Building and industrial demolition: Suitable for dismantling massive reinforced concrete structures in hazardous environments.
- Disaster response: Provides emergency solutions when conditions are too dangerous for crews to access. Removes debris and stabilizes collapsed structures.
- Underground engineering: Capable of breaking ore bodies and demolishing tunnels in extreme conditions like fires, fumes, radiation, etc.
- Nuclear decommissioning: Offers remote solutions for hazardous nuclear dismantling.

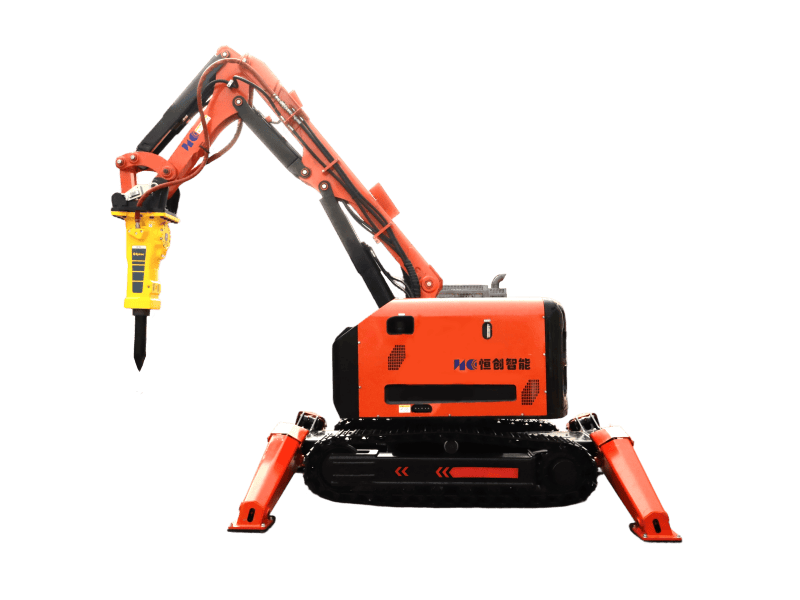

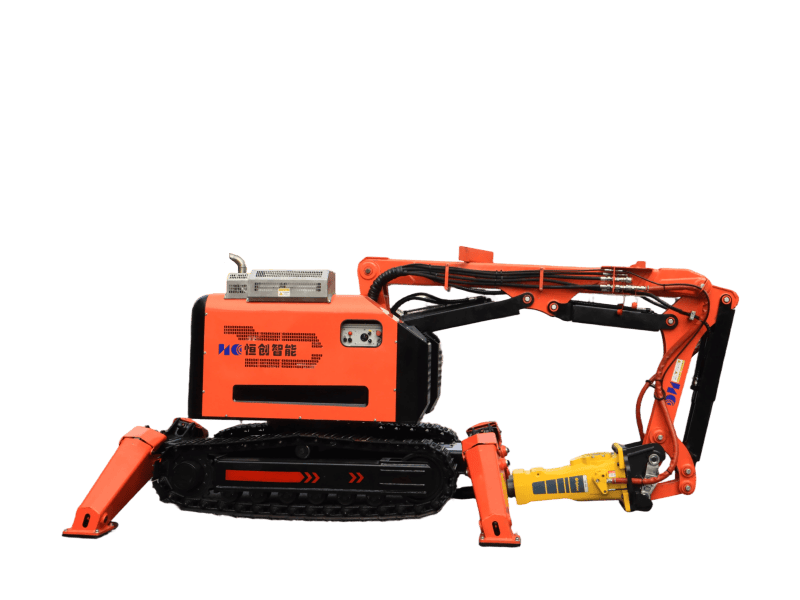

The HCR500C remote demolition robot features a powerful diesel engine, 6-way hydraulic manipulator and all-terrain tracks to overcome obstacles impassable for most demolition equipment. Optional blade and 4WD attachments further expand its working range over rough, sloped ground. With a vertical reach up to 7 meters and 360-degree continuous rotation, the robot can dismantle multi-story reinforced concrete structures and access confined spaces.
| Performance | |
| Machine weight | 6100 kg |
| Transport speed | 1.9km/h, 3.6 km/h |
| Slewing speed | 16 s/360° |
| Climbing inclination, max. | 30° |
| Track width | 300 mm |
| Hydraulic system | |
| Pump type | Load-sensing Pressure Limiting Axial Piston Variable Pump |
| Pump flow | 0~140 L/min |
| System pressure, max. | 24 Mpa |
| System pressure | 18 Mpa |
| Hydraulic oil tank capacity | 180 L |
| Dynamical System | |
| Drive Type/Model | Diesel Engine Driven |
| Power | 61 kW |
| Control system | |
| Control type | Portable remote control |
| Control mode | Radio |
| Range | Up to 100 m |
| Communication | CAN bus-based Digital Wireless Two-way Communication |
| Workspace Level | |
| Working height, max. | 7120 mm |
| Working length, max. | 6790 mm |
| Working depth, max. | 3435 mm |
Size:
Range:
