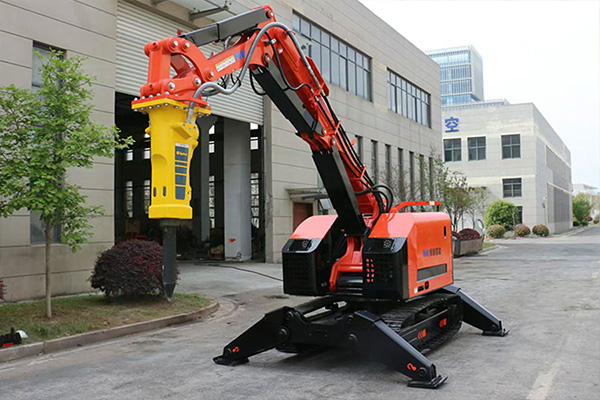

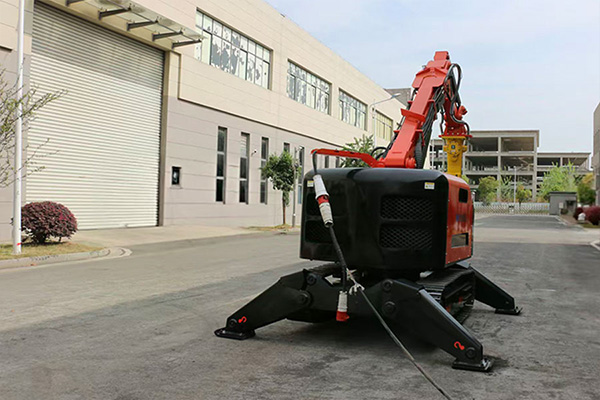

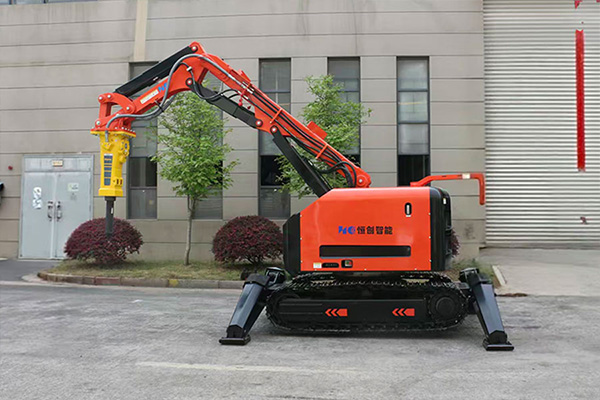

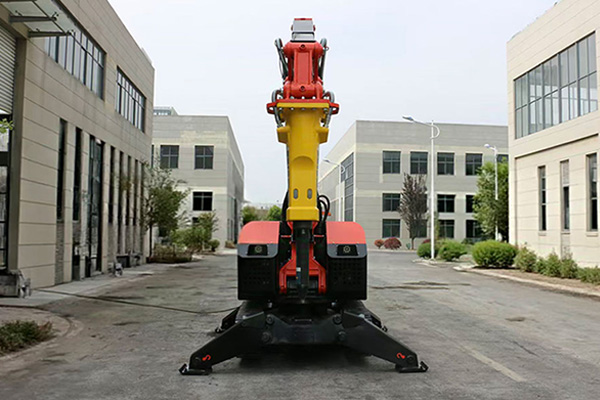

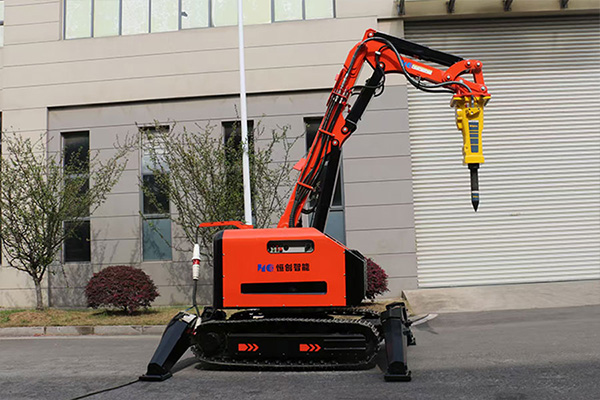

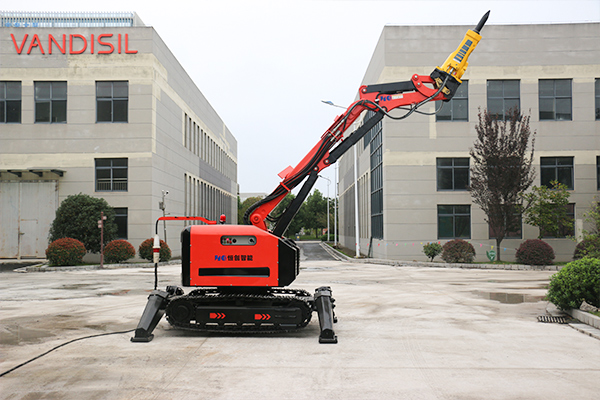

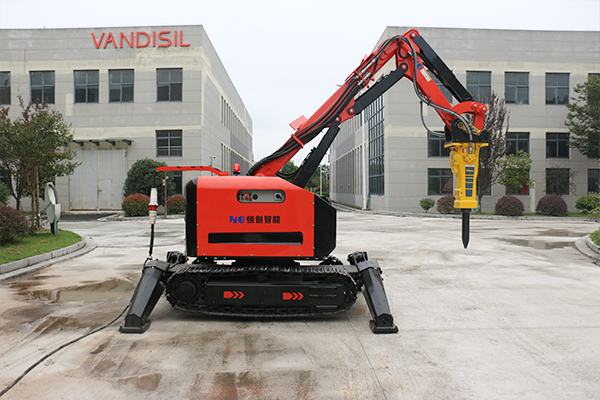

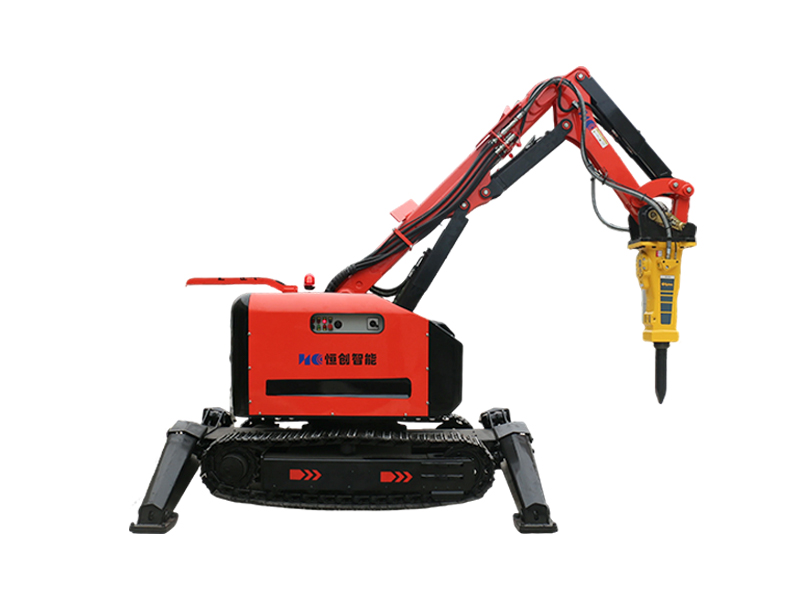

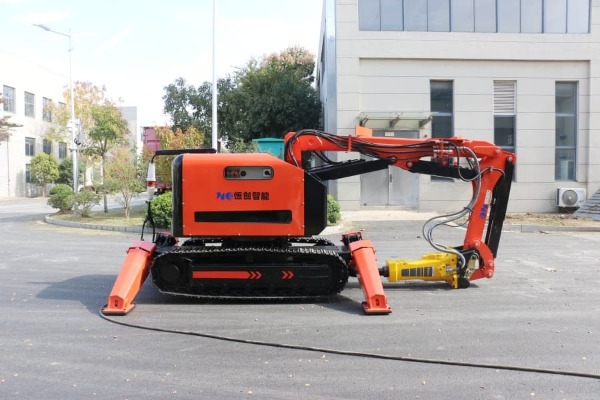

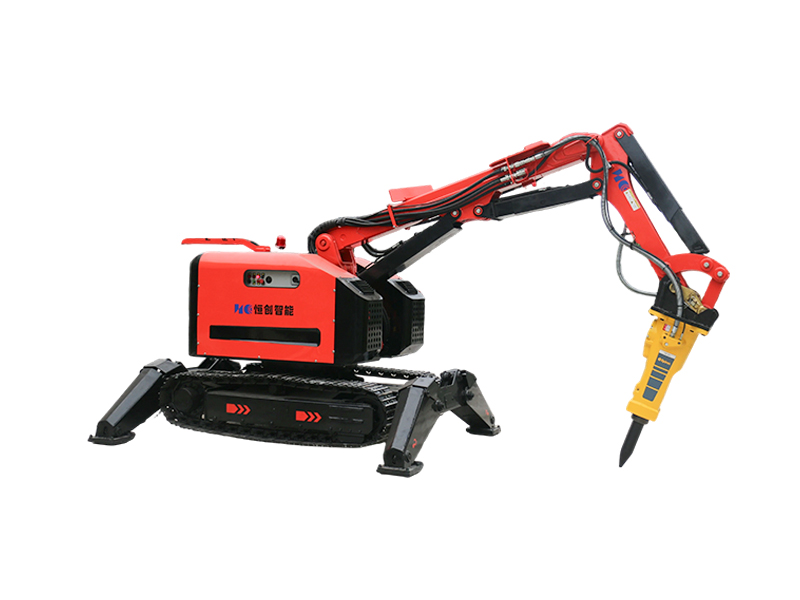

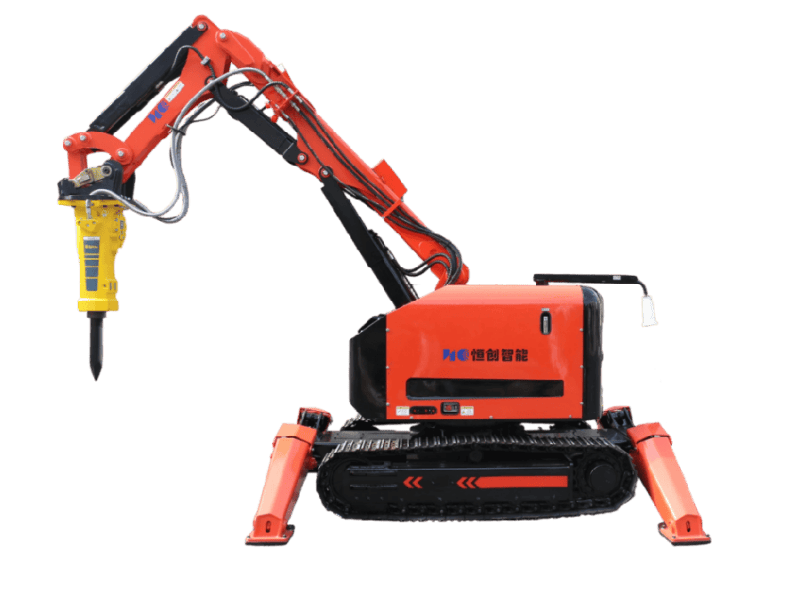

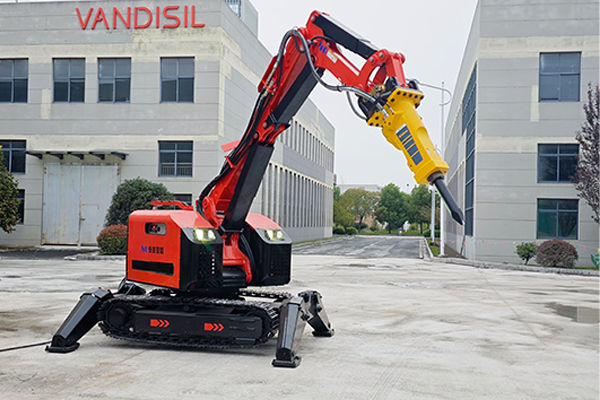

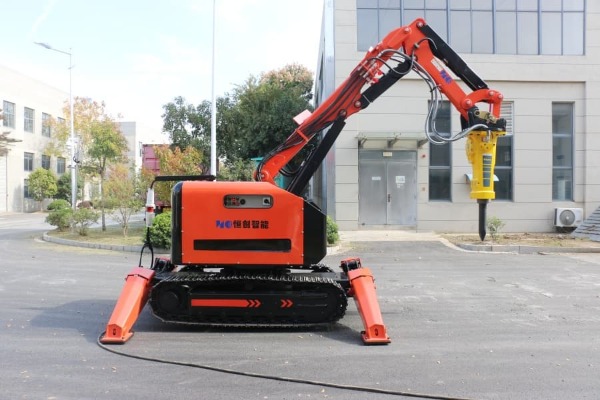

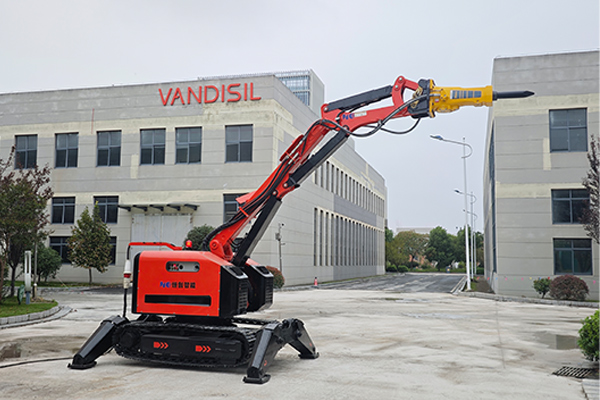

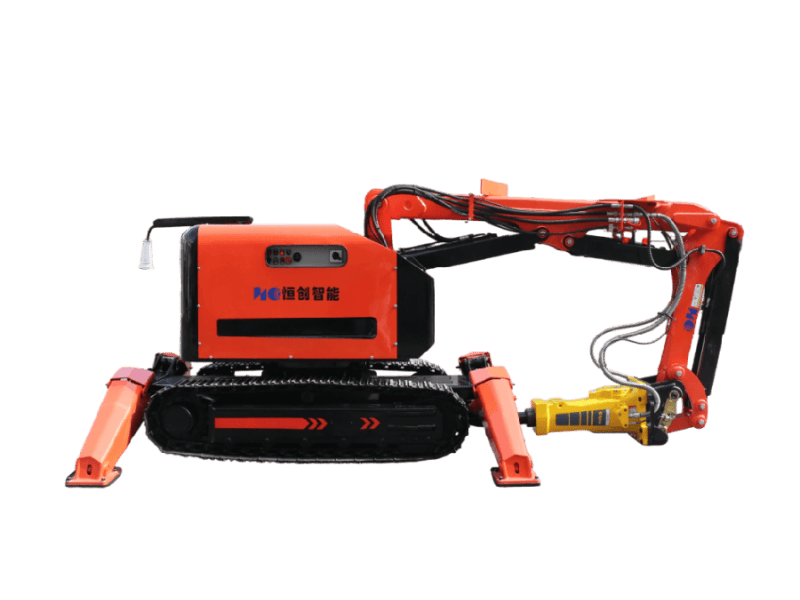

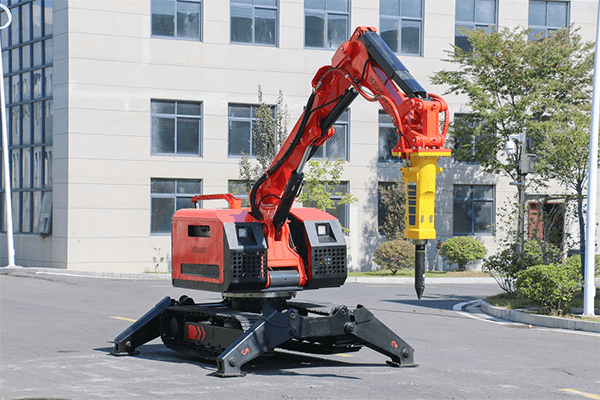

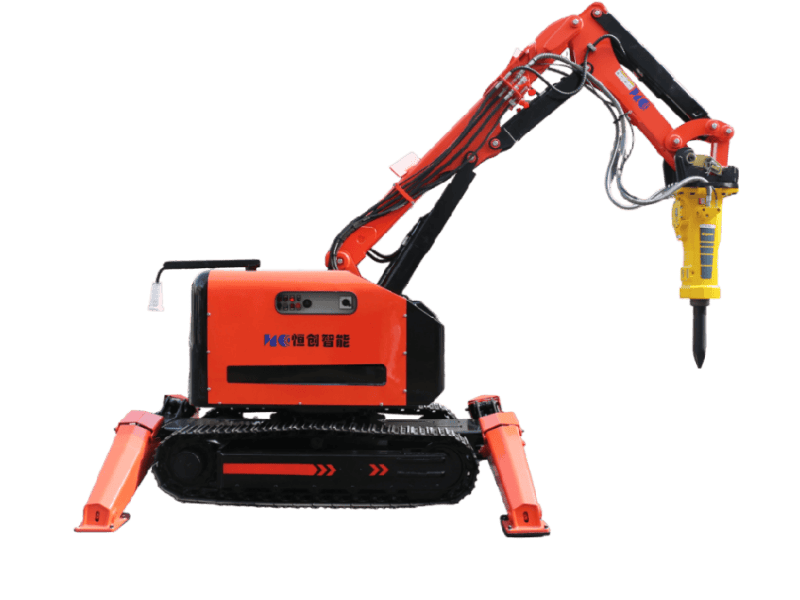

The HCR500D is a multipurpose demolition robot designed for high-risk and complex operations. It integrates advanced electro-hydraulic control technology and robust chassis to deliver powerful demolition capacity.
The demolition robot provides a powerful and versatile solution for the most demanding demolition and industrial applications in hazardous environments. With rapid configuration of multiple tools, it boosts productivity and safety with its all-terrain capability, precise control, and rugged design.
Item No :
HCR500DWeight :
5500 kgSpecifications :

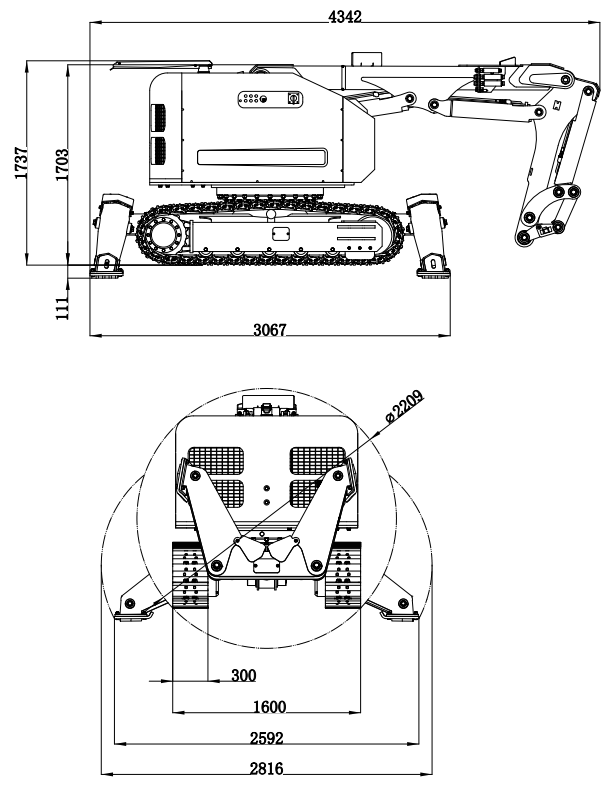

4748 mm*1600 mm*2012 mmPower :
45 kWTransport Package :
Steel bracket wooden casesWarranty :

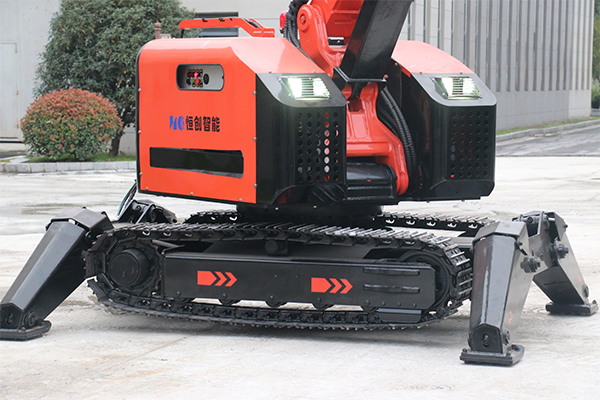

1 YearThe HCR500D Multipurpose Demolition Robot is an advanced high-tech equipment used for delicate operations in high-risk environments. Using a crawler chassis as the carrier, it organically integrates a load feedback electro-hydraulic proportional system, a CAN bus-based digital two-way wireless remote control system, and a multi-parameter sensing system. It can flexibly carry out all-round crushing and demolition operations in dangerous areas.
Through quick coupler, the robot can quickly configure different operating tools such as hydraulic shears, hydraulic tampers, hydraulic drills, and buckets to complete shearing, tamping, drilling, pile driving, excavation, and earthmoving. It has the advantages of strong adaptability, wide operation range, flexible and convenient operation, and safe and reliable work.
Key Features:
Applications:
| Performance | |
| Machine weight | 5500 kg |
| Transport speed | 0 km/h-2.5 km/h |
| Slewing speed | 6.8 rpm |
| Climbing inclination, max. | 30° |
| Track width | 400 mm |
| Hydraulic system | |
| Pump type | Load-sensing Pressure Limiting Axial Piston Variable Pump |
| Pump flow | 0~140 L/min |
| System pressure, max. | 25 Mpa |
| System pressure | 19 Mpa |
| Hydraulic oil tank capacity | 154 L |
| Dynamical System | |
| Drive Type/Model | Motor Driven |
| Power/Speed | 45 kW/2200 rpm |
| Torque, max. | 290 N·m |
| Current/Voltage | 85.4 A, 380/660 V |
| Starting device | Y-△Start/Direct Start |
| Control system | |
| Control type | Portable remote control |
| Control mode | Radio |
| Range | 100 m |
| Communication | CAN bus-based Digital Wireless Two-way Communication |
| Workspace Level | |
| Working height, max. | 7246 mm |
| Working length, max. | 6733 mm |
| Working depth, max. | 3618 mm |
