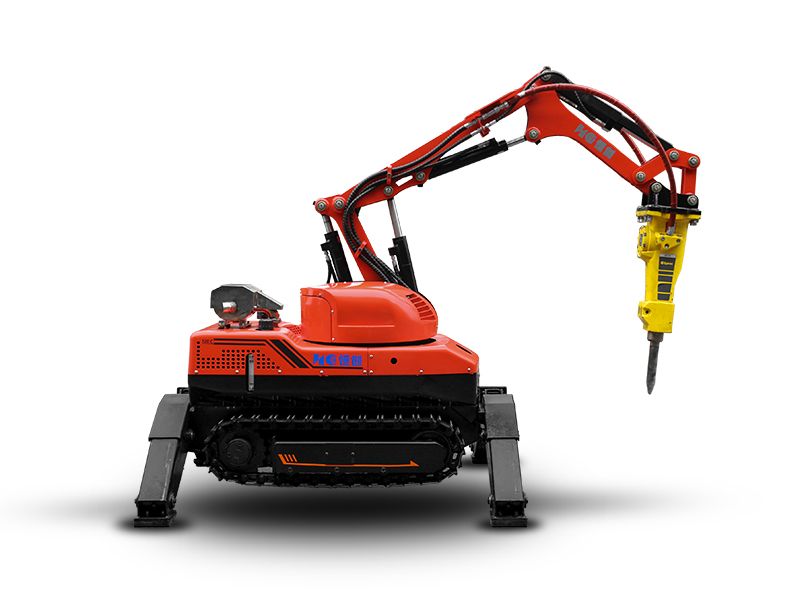

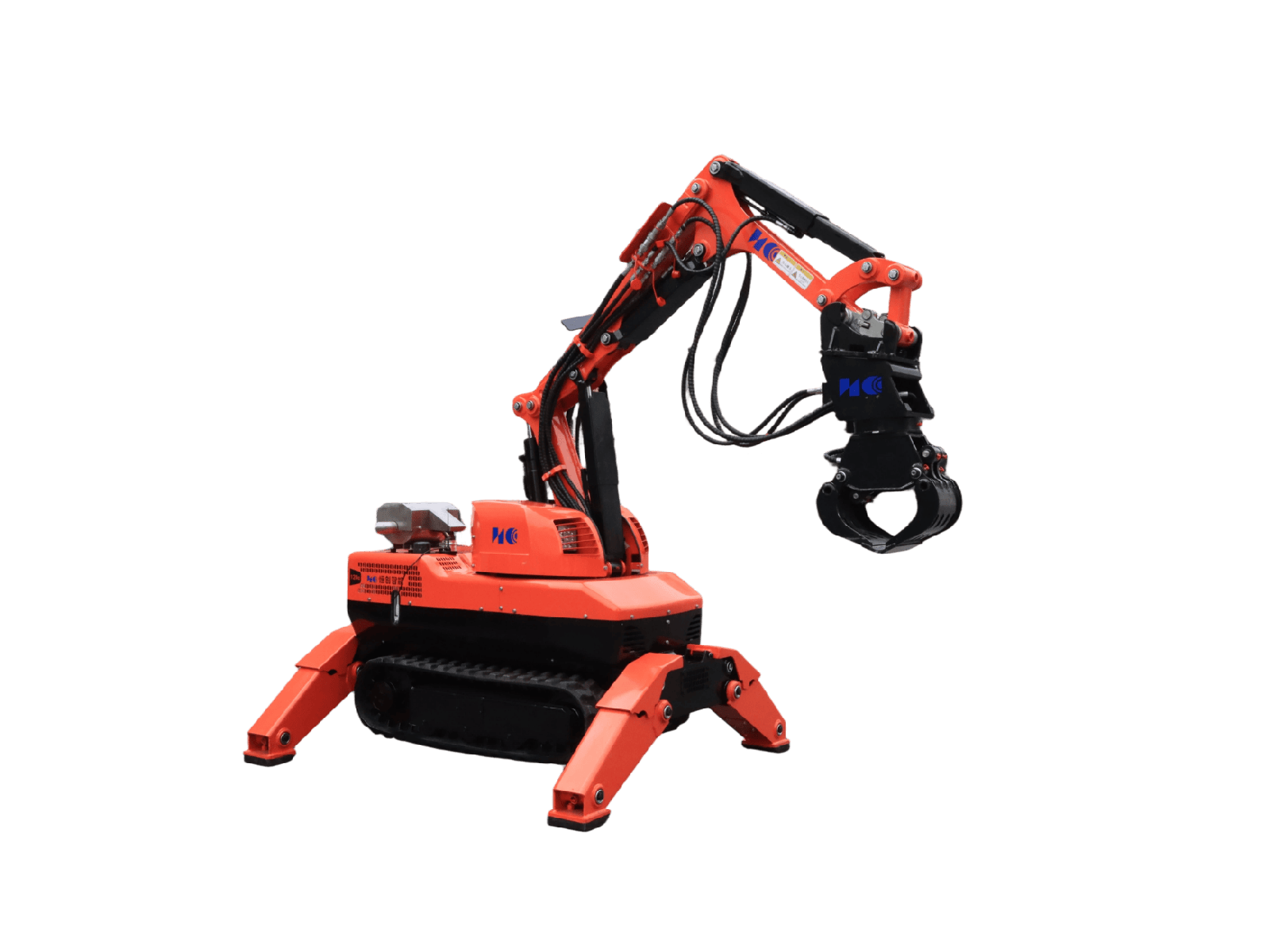

The HCR120C Demolition Robot is an independently developed diesel-powered multifunctional engineering robot suitable for high-risk environments. It integrates advanced technologies such as remote control, sensors, and hydraulics to provide flexible and adaptable solutions for underground operations like crushing, excavation, and demolition.
Item No :
HCR120CWeight :
1500kgSpecifications :
2200 mm*780 mm*1500 mmPower :
18.7 kWTransport Package :
Steel bracket wooden casesWarranty :

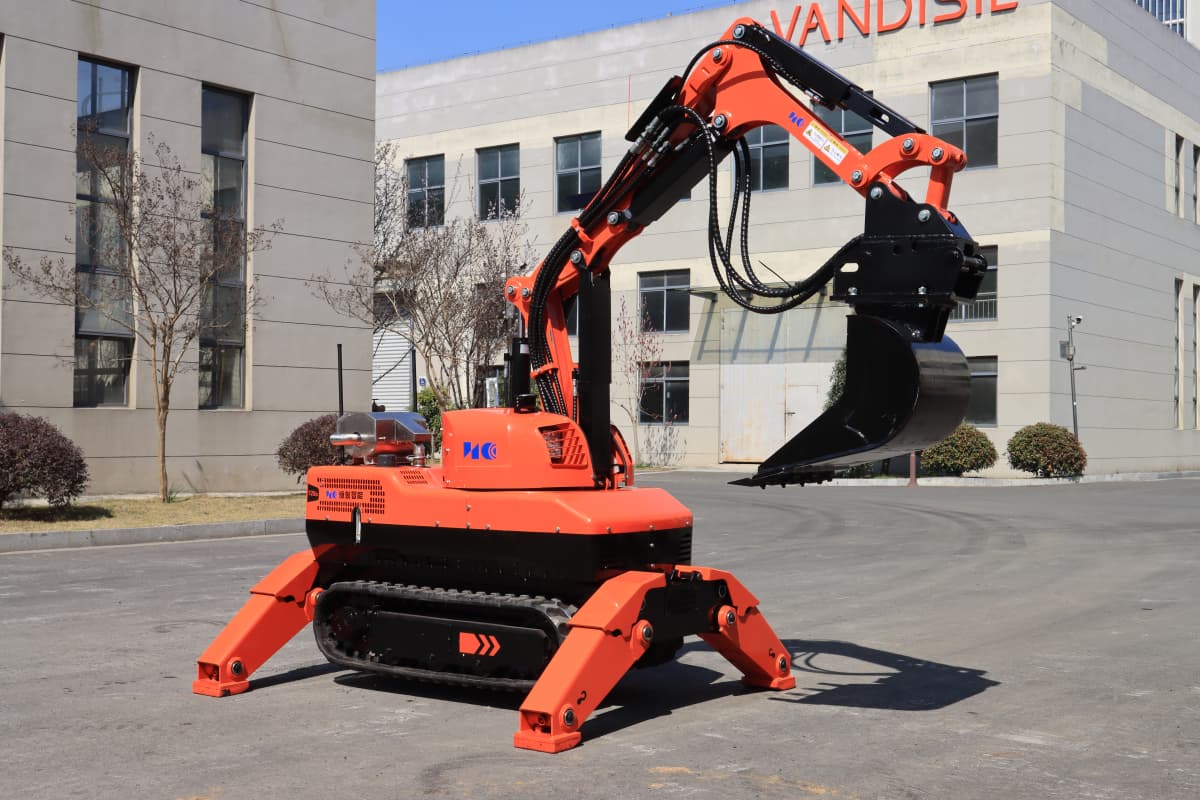

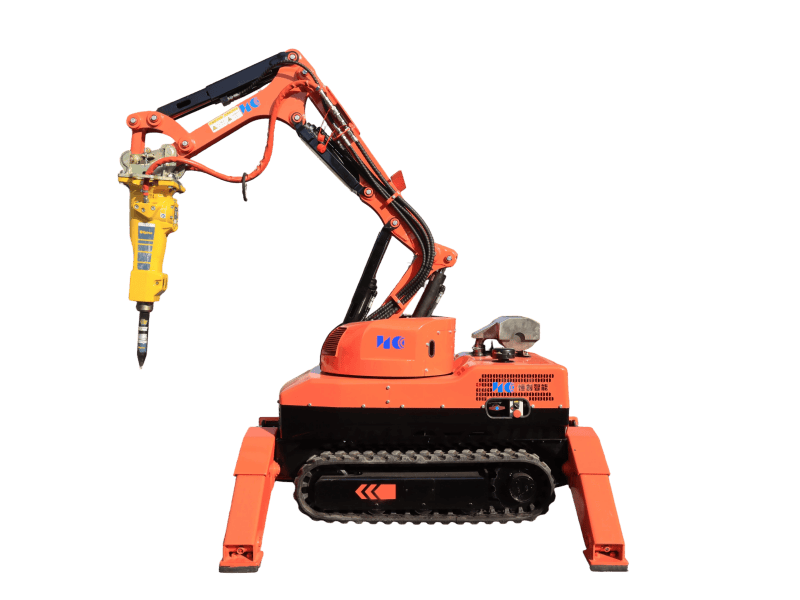

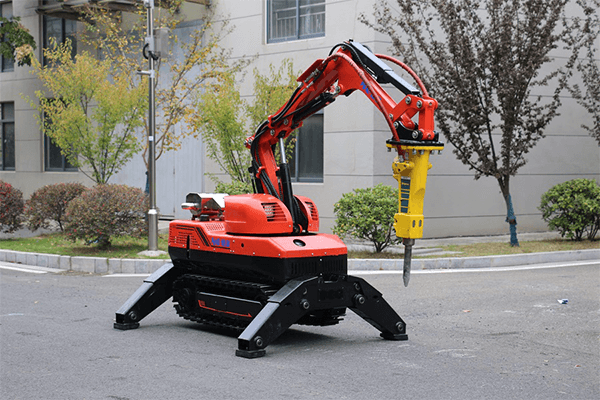

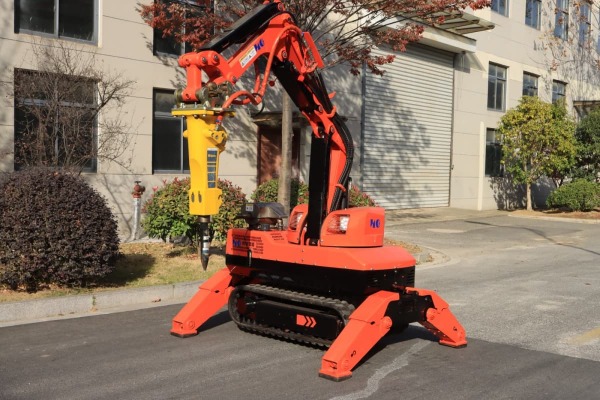

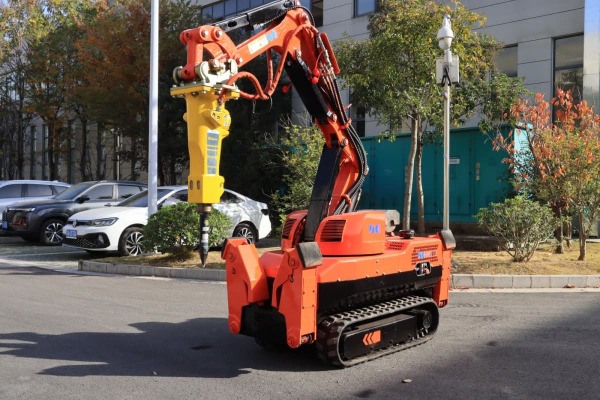

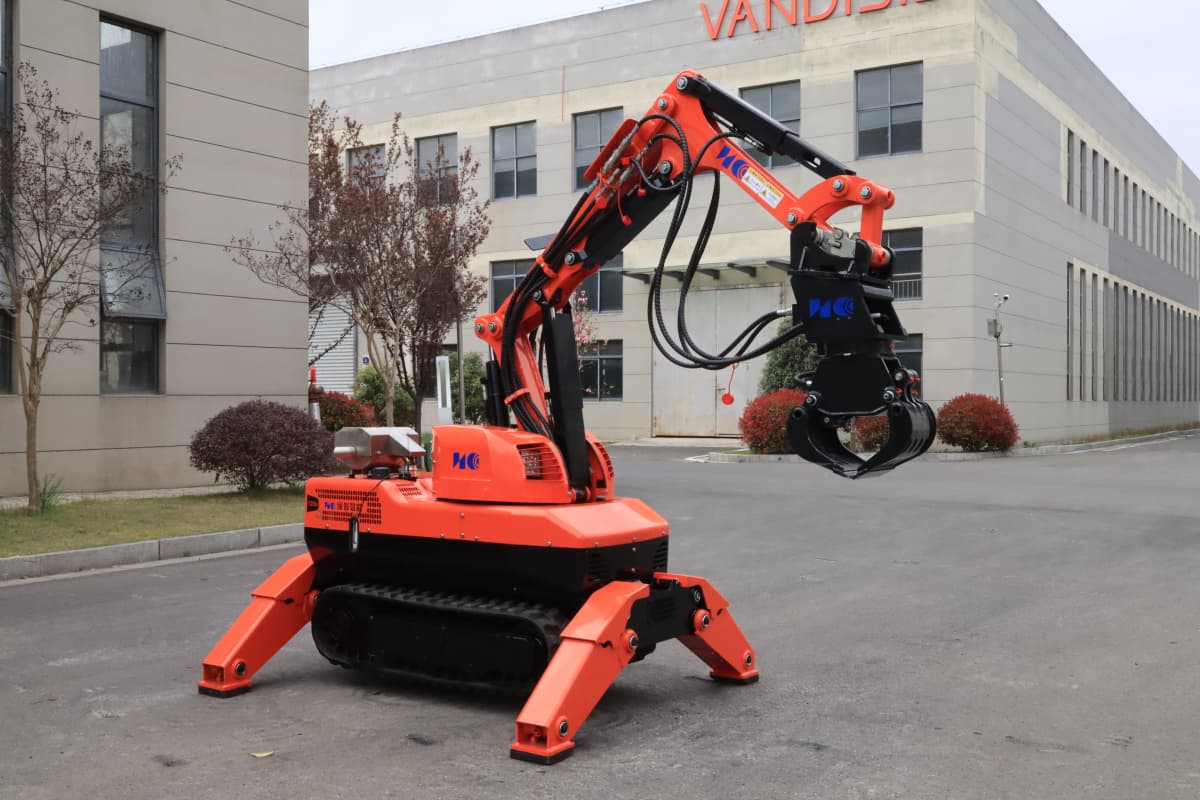

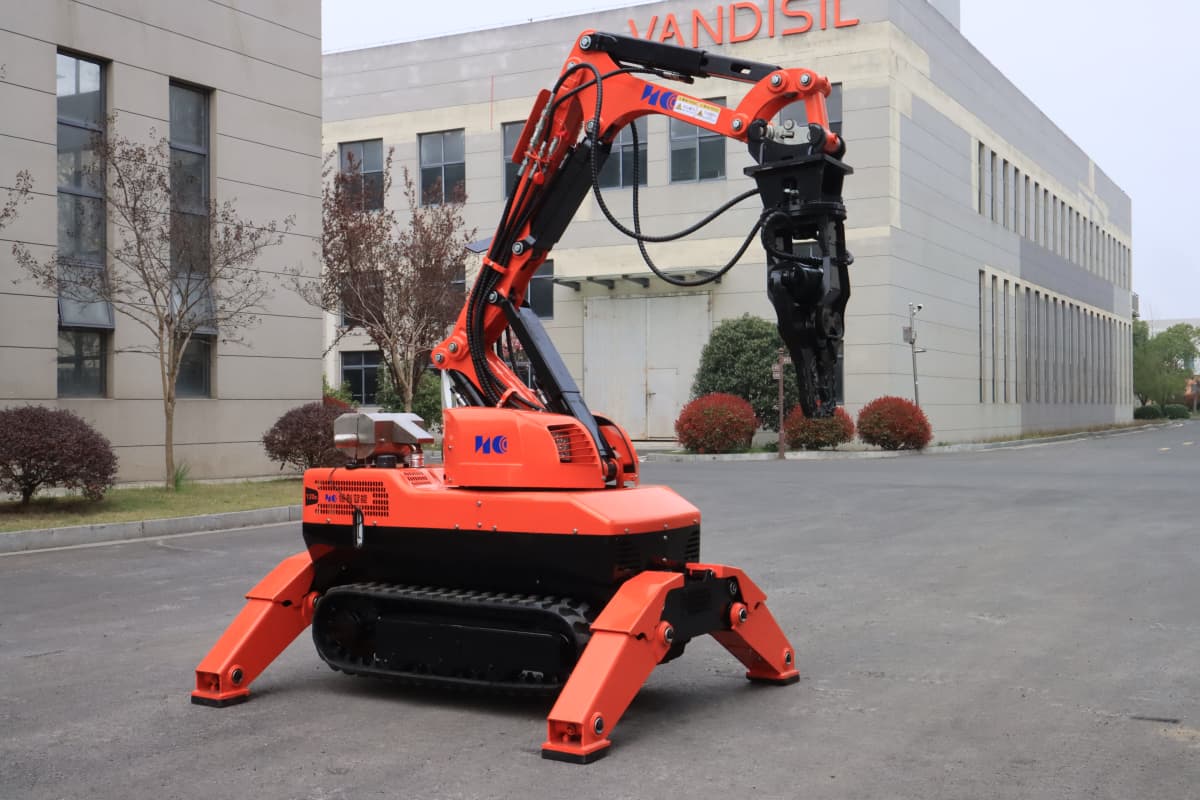

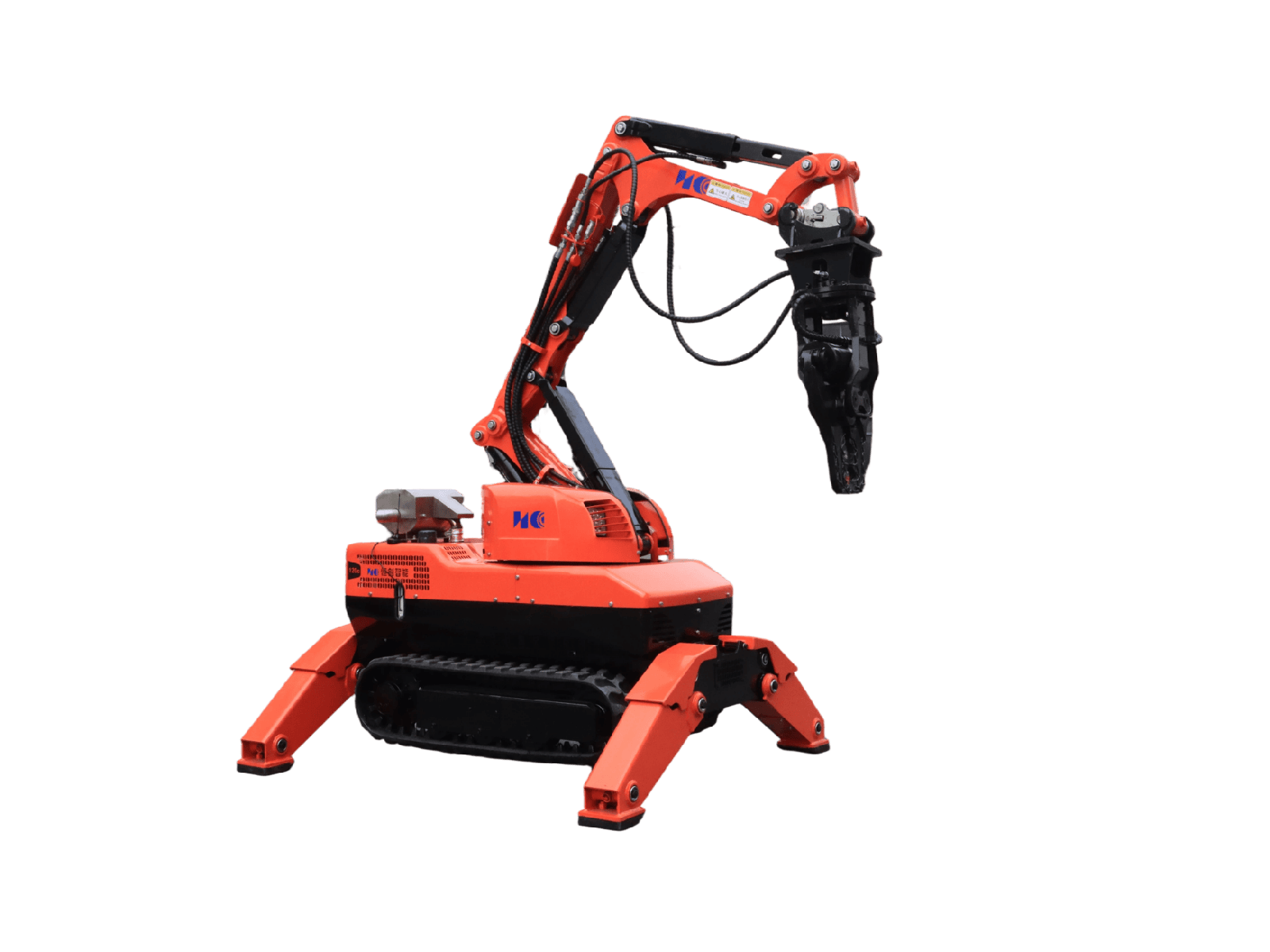

1 YearThe HCR120C is a new type of high-tech equipment with fine operation capability in high-risk environments. The robot adopts a small tracked chassis as the carrier and integrates technologies such as load feedback electro-hydraulic proportional system, CAN bus-based digital two-way wired remote control system and multi-parameter sensor system. It can be quickly configured with different operating tools such as hydraulic hammers, excavator buckets, grippers and hydraulic drills. It can flexibly carry out all-round remote control crushing, excavation, grabbing and transportation in high-temperature, highly dusty and collapsible hazardous areas.
The HCR120C Demolition Robot is suitable for crushing ore bodies and tunnel cross-section excavation, milling and demolition in underground mines. It is also suitable for narrow-vein mining recovery, secondary crushing, tunnel scaling, anchor cable cutting and profiling in mines. Featuring strong environmental adaptability, wide operating range, flexible and convenient operation and safe and reliable work, the robot represents the development and leap of robotics technology from pure kinematics to engineering dynamics and the integration of technologies in specific fields.
| Performance | |
| Machine weight | 1500 kg |
| Transport speed | 2.2 km/h, 4.0 km/h |
| Slewing speed | 6.5 rpm |
| Climbing inclination, max. | 30° |
| Track width | 175 mm |
| Hydraulic system | |
| Pump type | Load-sensitive axial piston variable pump |
| Pump flow | 0~50L/min |
| System pressure | 19 MPa |
| Hydraulic oil tank capacity | 40 L |
| Dynamical System | |
| Drive Type/Model | Diesel Engine Driven |
| Power/Speed | 18.7 kW |
| Torque, max | 60.8 N·m |
| Diesel Tank Capacity | 28 L |
| Control system | |
| Control type | Portable remote control |
| Control mode | Radio/wired(20 m) |
| Range | 100 m |
| Communication | CAN bus-based digital wired bidirectional communication |

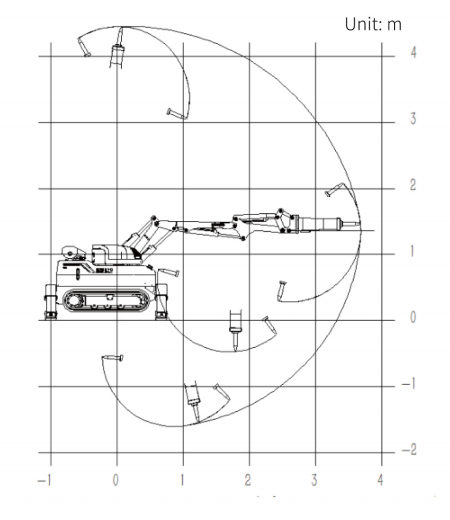

| Workspace Level | |
| Working height, max. | 4400 mm |
| Working depth, max. | 1500 mm |
| Working radius, max. | 3685 mm |
