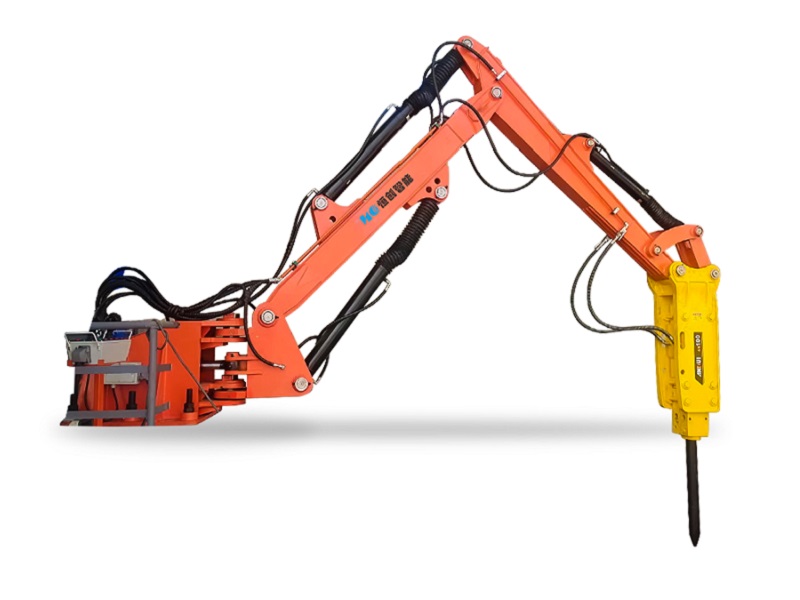

HCBS-2520-D Rockbreaker Boom

HCBS-2520-D Rockbreaker Boom

The HCBS-2520-D Rockbreaker Boom is a specialized mechanical arm for crushing and unblocking in extreme environments. It uses hammers and drill rods to break blockages at crusher ports and quarries. Certified to ISO 19001, this multifunctional machine serves global mining and aggregates customers.

The HCBS-2520-D Rockbreaker Boom improves efficiency for mines and quarries. A proven solution for the toughest crushing tasks, it leads the way in extreme environment mechanization. With its high productivity and reliability, this machine hand has won widespread praise worldwide.

  • Item No :

    HCBS-2520-D
  • Weight :

    4500 kg
  • Power :

    37 kW
  • Pump flow :

    0-100 L/min
  • Transport Package :

    Steel bracket wooden cases
  • Warranty :

    1 Year

The HCBS-2520-D engineering robotic arm uses the impact force of a hammer and drill rod to break large, hard materials. HCBS-2520-D has a large crushing range, accurate positioning, and is safe and efficient. Effectively improve crushing efficiency while ensuring safety. HCBS-2520-D unblocks and crushes material blockages at various crusher inlet ports, chutes, screening ports, loading and unloading stations in mines and gravel aggregates. Of course, including the nuclear industry or special high-risk industries to carry out remote crushing, grasping, cutting, etc. Our HCBS-2520-D has always received unanimous praise.



Key Features:

  • A lifting weight of 4,500 kg and 150° double swing range
  • Heavy-duty and multifunctional for high productivity, safety and accuracy
  • Certified to ISO 19001 with robust components like axial piston pump, multi-way valve, 370 L oil tank and 37kW motor
  • Emergency stop controls for reliability
  • Easy to operate yet powerful and flexible for difficult crushing tasks
  • Maximum power and versatility for extreme environments



Main Applications:

  1. Widely used in mines and aggregate crushing plants worldwide
  2. Excels in unblocking crusher ports and secondary crushing
  3. Conducts remote operations such as grasping and cutting in hazardous environments like the nuclear industry
Performance
Machine weight 4500 kg
Main arm length 2500 mm
Second arm length 2000 mm
Machine height 3950 mm
Oil cylinder  Double swing oil cylinder
Slewing degrees 150°
Hydraulic system
Pump type Axial piston variable displacement pump
Pump flow 0-100 L/min
System pressure 21 MPa
Hydraulic oil tank capacity 370 L
Dynamical System
Drive Type/Model Motor Driven/AC380 V, 50 Hz
Power/Speed 37 kW
Current/Voltage 380 V

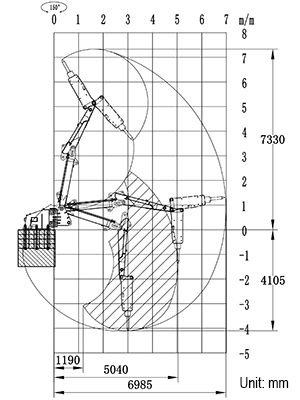

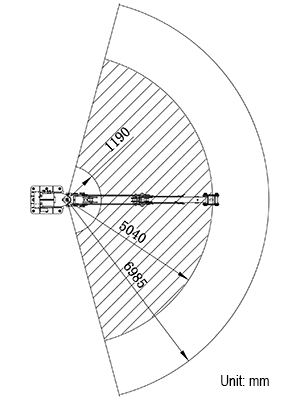

Workspace Level
Working height, max. 7330 mm
Working depth, max. 4105 mm
Working radius, max. 6985 mm
Vertical working radius, max. 5040 mm
Vertical working radius, min. 1190 mm
  • #
  • #



Hydraulic hammer
Model HC68 HC75 HC85 HC100
Drill rod diameter 68 mm 75 mm 85 mm 100 mm
Weight 330 kg 158 kg 591 kg 880 kg
Working flow rate 40-70 L/min 50-90 L/min 60-100 L/min 80-110 L/min
Working pressure 11-14 MPa 12-15 MPa 13-16 MPa 15-17 MPa
Impact frequency 500-900 bpm 400-800 bpm 400-800 bpm 350-700 bpm
