HCBMR-6535-D Heavy Duty Rockbreaker Boom System
Item No :
HCBMR-6535-D
Reach:
12 tons
Working depth:
75 kW
Hammer model:
0–180 L/min
HPU power:
Steel bracket wooden cases
Swing / rotation angle:
1 year
CATEGORIES
how can we help you
You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.
Contact usThe HCBMR-6535-D stationary rock breaker is a heavy-duty rockbreaker boom that provides a safe, powerful solution for material handling in hazardous environments.
Pedestal Boom driven by a 75 kW motor and 180 L/min pump, the 6535-D has a payload up to 12,000 kg. It has a 360° rotation and can reach up to 12,113 mm, giving flexibility. Electro hydraulic valves and easy-to-use handles allow precise control. Multiple safety mechanisms ensure protection. Manual emergency functions operate if power fails.
Key Features:
- Heavy-duty and durable High-strength steel construction with a maximum payload of 12,000 kg.
- Powerful hydraulics Driven by a 75 kW motor and hydraulic pump, with a flow rate up to 180 L/min and pressure up to 25 MPa.
- High safety Multiple safety mechanisms for overload protection and emergency stops. Manual emergency operating functions.
- Wide range of motion 360° continuous rotation and a reach up to 12,113 mm for flexible operation.
- Easy to operate Electro hydraulic proportional valves for precise control. Easy-to-use control handles.
Applications:

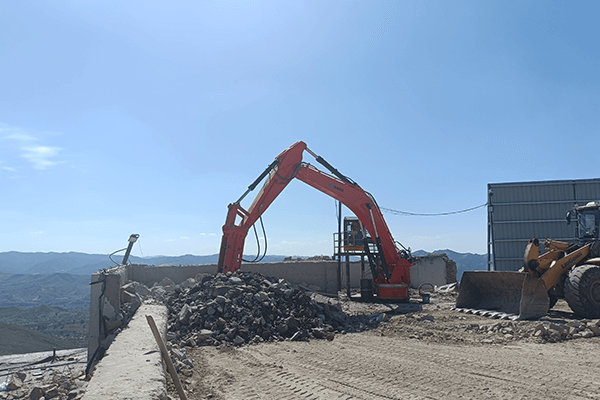

- Quarries and open-pit mines Used for clearing oversized boulders at discharge points of crushers and loadout areas. Facilitates safe and efficient material handling and transportation.
- Underground metal mines Used in areas with limited space at ore pass openings and tipping points for handling and crushing oversized materials. Improves material flow and productivity.
- Heavy industries like demolition, construction and recycling Used to handle heavy, bulky materials and break down large objects when manual work is difficult, dangerous or inefficient.
The 6535D Rock Breaker Machine improves productivity and safety across industries like mining, quarrying, construction and demolition. In mines and quarries, it clears oversized materials at crushers and loadout facilities, facilitating efficient transportation. Underground, it handles oversized materials in tight spaces at ore passes. It also handles heavy, bulky objects and breaks down large structures where manual work is difficult or dangerous.
An alternative to intensive human labor, the HCBMR-6535-D rockbreaker boom eliminates demanding jobs and intensifies operations through advanced hydraulics and mechanization. Suitable for any extremely difficult material handling or demolition, it enhances productivity, efficiency and safety. Powerful, durable and highly productive, the HCBMR-6535-D Rock breaker excavator provides an ideal solution for hazardous areas and applications requiring heavy-duty rockbreaker booms.
| Performance | |
| Weight of machine excluding attachment | 1000 kg |
| Main arm length | 6500 mm |
| Second arm length | 3500 mm |
| Machine height | 7880 mm |
| Oil cylinder | Rotary bearing |
| Slewing degrees | 360° |
| Hydraulic system | |
| Pump type | Axial piston variable displacement pump |
| Pump flow | 0-180 L/min |
| System pressure | 25 MPa |
| Hydraulic oil tank capacity | 500 L |
| Dynamical System | |
| Drive Type/Model | Motor Drive/AC380 V, 50 Hz |
| Power/Speed | 75 kW |
| Current/Voltage | 380 V |
| Workspace Level | |
| Working height, max. | 10093 mm |
| Working depth, max. | 8882 mm |
| Working radius, max. | 12113 mm |
| Vertical working radius, max. | 9490 mm |
| Vertical working radius, min. | 1740 mm |
 |
 |
