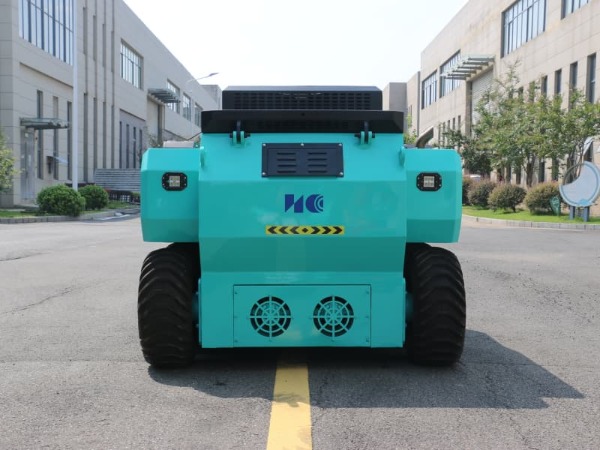

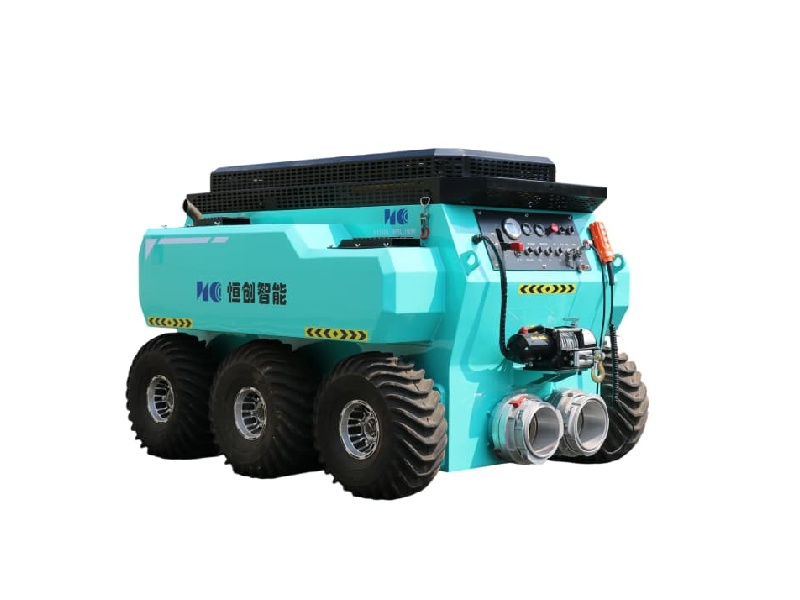

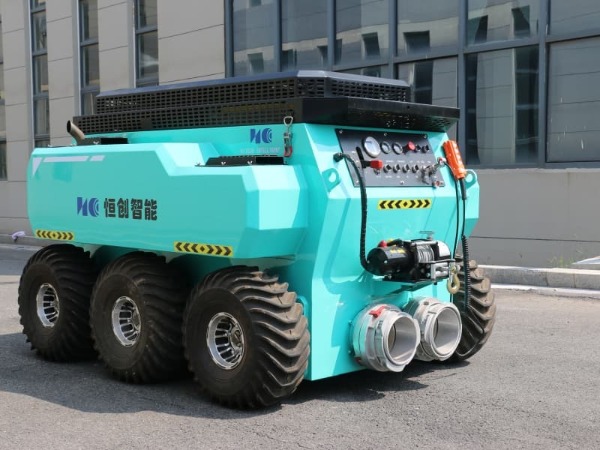

Driven by diesel engine and hydraulic system, and uses a variety of control methods, such as wireless remote control/wired remote control/vehicle body control. The robot adopts six-wheel walking, which can be quickly installed with tracks to achieve wheel-and-shoe compounding. It can be used for drainage and rescue in urban garages, subway stations, tunnels, culverts, urban narrow roads and other environments. When floods occur in cities, resulting in serious water storage in underground garages, subways, tunnels, etc., the robot (wheel-and-shoe compounding) can realize rapid flood discharge rescue. This product has functions such as drainage, audio & video reconnaissance, water leakage reconnaissance, and environmental reconnaissance in disaster areas. The tracks can be quickly disassembled and assembled to meet different use environments and road conditions.
Item No :
RXR-Q300L-AHHCWeight :
1243 kgSpecifications :
2181*1569*1395 mmClimbing inclination :
30°Transport Package :
Steel bracket wooden casesFeatures:
Versatile functions :
Amphibious wheeled chassis : It adopts a 6*6 wheeled + tracked chassis, which is hydraulically driven and amphibious, enabling it to travel on all terrains. It can float and move on water, and is suitable for various rescue scenarios. The dual-purpose chassis of tires + tracks (the tracks can be quickly disassembled and assembled) allows it to easily cross obstacles and is suitable for complex terrain areas such as rough, muddy and narrow roads where large vehicles cannot enter.
Remote relay : It has a long drainage distance and a long continuous working time. If the water supply distance is too long, a water supply and drainage robot can be used to provide additional power in the middle.
Remote control start : It enables remote control with the separation of humans and the machine. The status parameters are observable and controllable, and it is safe and reliable.
Hydraulic interface : It has multiple hydraulic power output interfaces and an ultra-high-pressure hydraulic oil source, and can be externally connected to demolition tools such as hydraulic circular saws.
Widely applied in:
| Machine weight | 1243 kg | |
| Dimensions | 2181*1569*1395 mm | |
| Driving speed | 0-4 km/h | |
| Driving speed in water | 0-2 km/h | |
| Diesel fuel tank capacity | 60 L | |
| Hydraulic oil tank capacity | 60 L | |
| Remote control distance | ≥500 m | |
| Side tilt stability angle | 25° | |
| Climbing angle | 30° | |
| Ground clearance | 113 mm | |
| Max. distance of the drainage belt | 500 mm | |
| Drainage flow rate |
2*600 m³/h | |
| Lift height |
10 m |
|
| Duration on water |
≥ 8 h | |
| Winch traction force |
6 kN |
