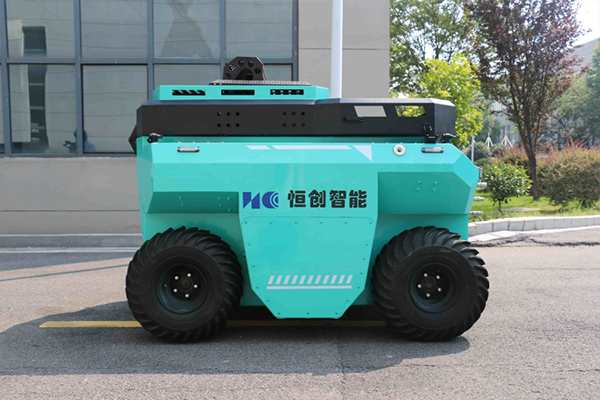

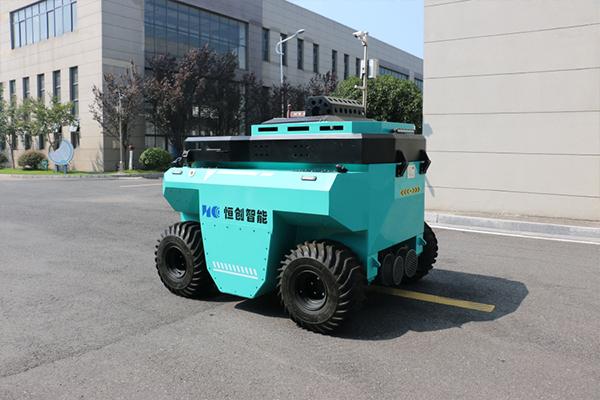

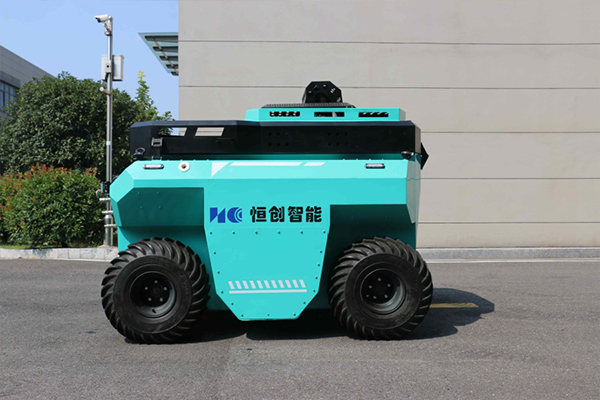

RXR-Q200L Flood Drainage Robot
Item No :
RXR-Q200L-AHHC
Weight :
1080 kg
Specifications :
2152*1555*1562 mm
Climbing inclination :
30°
Transport Package :
Steel bracket wooden cases
CATEGORIES
how can we help you
You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.
Contact usFeatures:
Versatile functions :
- Water Supply: It can supply water to fire trucks and also serve as a water intake module for remote water supply. There is no need for a water intake platform, and it can enter the water on its own. It has a large flow rate and a fast water supply speed.

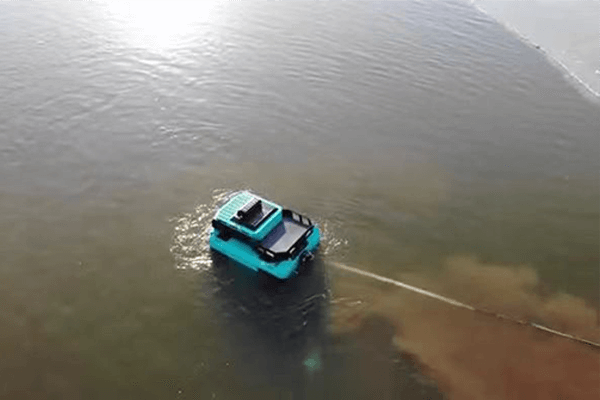

- Flood Drainage: It has a large drainage flow rate, can drain water over a long distance, is easy to operate, and can be quickly deployed in place.
- Strong Adaptability: It has low requirements for water quality and can drain sewage containing small solid particles and other impurities.
Amphibious wheeled chassis : It adopts a wheeled chassis, which is hydraulically driven. It is equipped with amphibious vacuum tires and can travel on all terrains. It can achieve independent driving, turn around in place, is maneuverable and flexible, can work both on land and in water, is not restricted by the water depth, and is suitable for driving on all terrains.
Remote relay : It has a long drainage distance and a long continuous working time. If the water supply distance is too long, a water supply and drainage robot can be used to provide additional power in the middle.
Remote control start : It enables remote control with the separation of humans and the machine. The status parameters are observable and controllable, and it is safe and reliable.

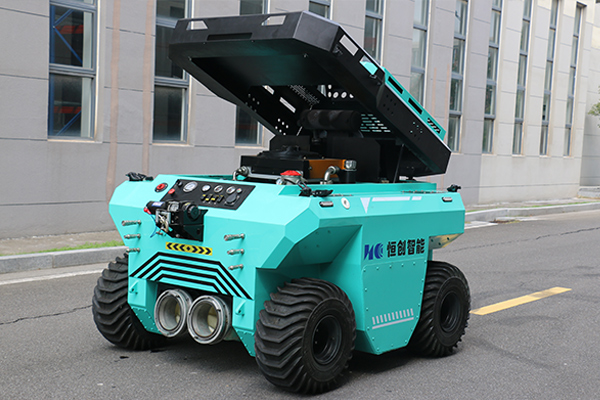

Hydraulic interface : It has multiple hydraulic power output interfaces and an ultra-high-pressure hydraulic oil source, and can be externally connected to demolition tools such as hydraulic circular saws.
Widely applied in:
- Flood drainage, emergency rescue and disaster relief in urban garages
- Flood drainage and rescue in subway stations
- Flood drainage and rescue in tunnel and culvert terrains
- Flood drainage on narrow urban roads
- Flood drainage and emergency rescue in reservoirs and ponds
- As a water intake module for remote water supply
|
Machine weight
|
1080 kg |
| Dimensions |
2152*1555*1562 mm
|
| Driving speed | 0-10 km/h |
| Driving speed in water | 0-3 km/h |
| Diesel fuel tank capacity | 60 L |
| Hydraulic oil tank capacity | 80 L |
| Remote control distance | ≥500 m |
| Side tilt stability angle | 32° |
| Climbing angle | 30° |
| Ground clearance | 150 mm |
| Max. distance of the drainage belt | 500 mm |
| Drainage flow rate | 200 L/s |
| Lift height | 6-12 m |
| Duration on water | 5 h |
| Winch traction force | 4.8 kN |
