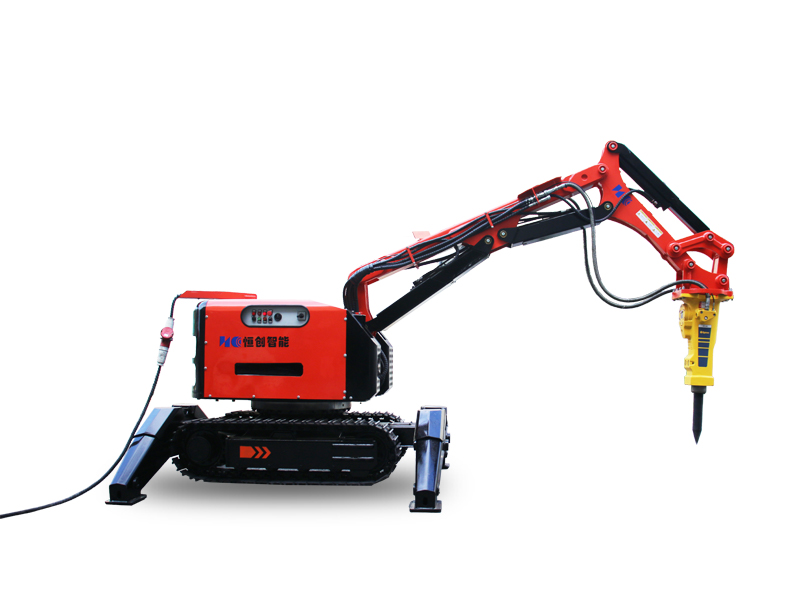

HCR260D Heavy-duty Demolition Robot for Construction
Item No :
HCR260D
Weight :
4280kg
Specifications :
3768 mm × 1210 mm × 1631 mm
Power :
30 kW
Transport Package :
Steel bracket wooden cases
Warranty :
1 year
CATEGORIES
how can we help you
You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

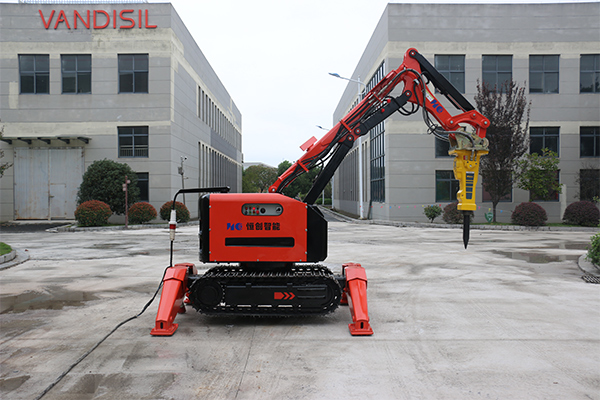

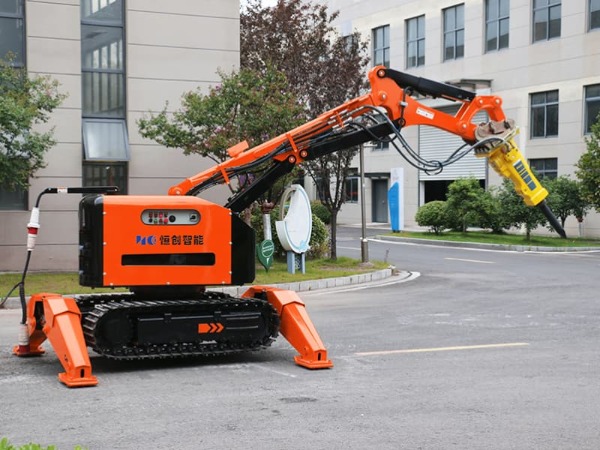

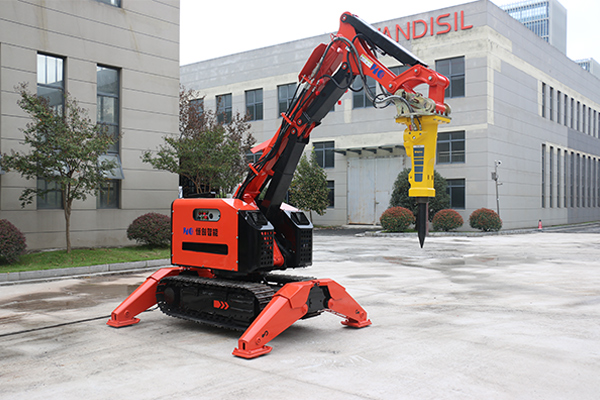

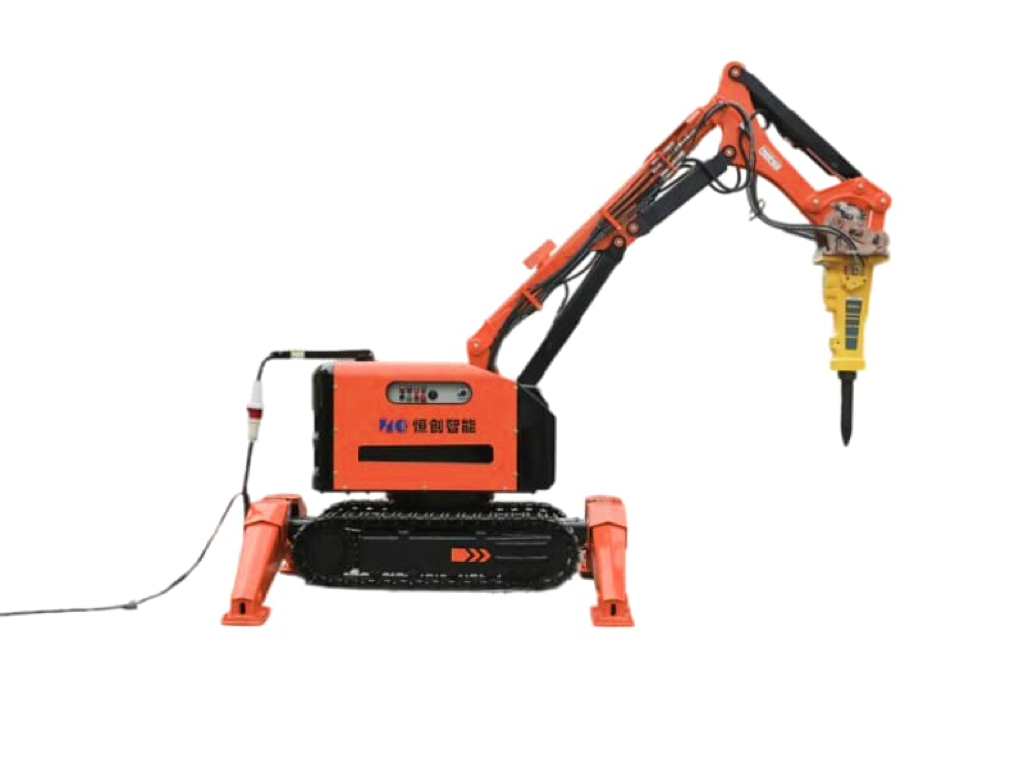

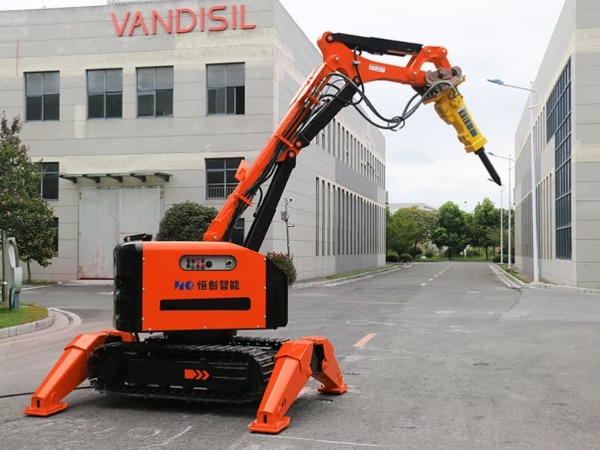

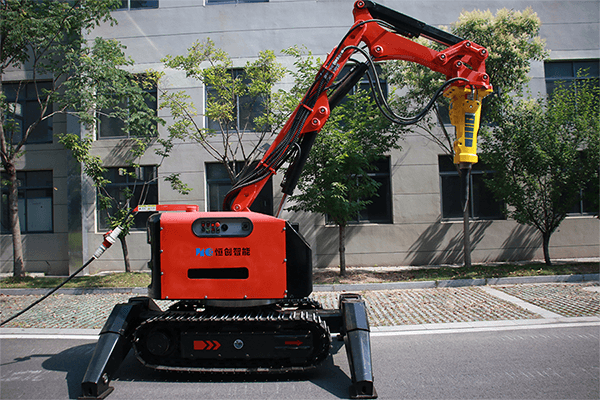

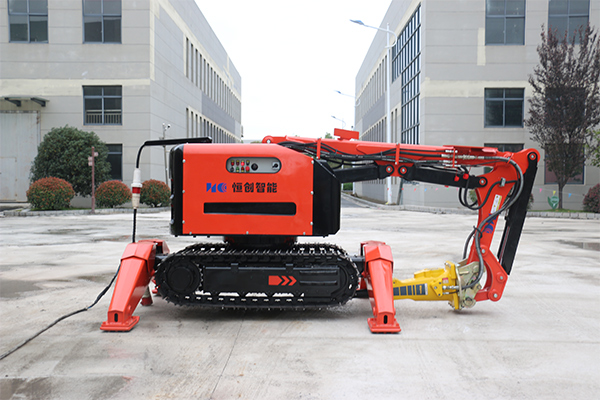

Contact usThe HCR260D construction demolition robot is Hitech Intelligent hydraulic demolition robot. It is designed to perform dangerous demolition and dismantling jobs in hazardous environments in place of human.

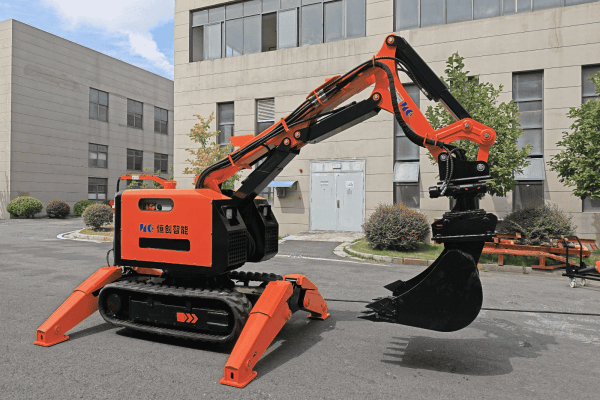

The demolition robots modular and durable design allows for easy maintenance and part replacement to limit downtime. Its variety of attachments like hydraulic hammers, buckets and grapples enable it to accomplish any demolition job. An intelligent control system gives operators efficient and precise control of the robot for optimized productivity and safety.
The HCR260D remote demolition robot hydraulic demolition robot performs difficult demolition jobs in harsh environments. It provides significant force and reliability to minimize risks and accomplish the work.
Key Features:
- Heavy-duty hydraulic actuators and durable steel structures
- Precise hydraulic manipulators with multiple degrees of freedom
- Advanced hydraulic hammer with high frequency and low vibration
- Environmental protection systems for dust control and noise reduction
- Intelligent control systems for efficient and safe operations
- Modular design for easy maintenance and parts replacement
Main Applications:
- Building demolition: The 6 m high, 58 m long robotic arm is suitable to demolish multi-story buildings floor by floor.
- Industrial dismantling: The HCR260D can dismantle massive industrial structures like rotary kilns, furnaces and pipelines.
- Underground engineering: The robot is capable of breaking ore bodies and demolishing tunnels.
- Nuclear decommissioning: The HCR260D provides remote solutions for hazardous nuclear dismantling.
The HCR260D construction demolition robot is a heavy-duty demolition robot designed for high productivity, safety, and reliability in hazardous conditions. Its combination of power, durability, precision and intelligent control allows it to take on demanding demolition work that humans should avoid.
| Performance | |
| Machine weight | 4280 kg |
| Transport speed | 2.5 km/h |
| Slewing speed | 16 s/360° |
| Climbing inclination, max. | 30° |
| Track width | 300 mm |
| Ground clearance | 210 mm |
| Hydraulic system | |
| Pump type | Load-sensing Pressure Limiting Axial Piston Variable Pump |
| Pump flow | 0~83 L/min |
| System pressure, max. | 23 Mpa |
| System pressure | 19 Mpa |
| Hydraulic oil tank capacity | 95 L |
| Dynamical System | |
| Drive Type/Model | Motor Driven |
| Power | 30 kW |
| Starting device | Direct start |
| Control system | |
| Control type | Portable remote control |
| Control mode | Radio |
| Range | Up to 100 m |
| Communication | CAN bus-based Digital Wireless Two-way Communication |

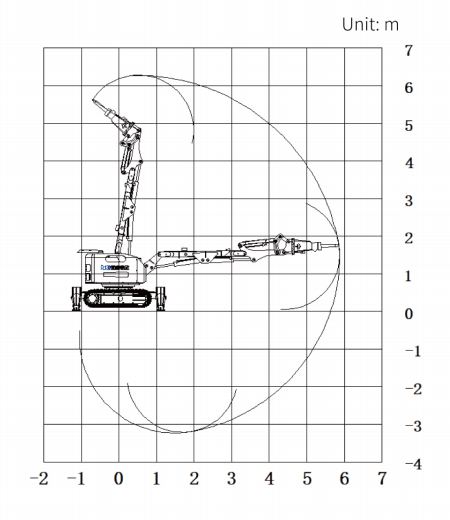

| Workspace Level | |
| Working height, max. | 6270 mm |
| Working radius, max. | 5896 mm |
| Working depth, max. | 3230 mm |

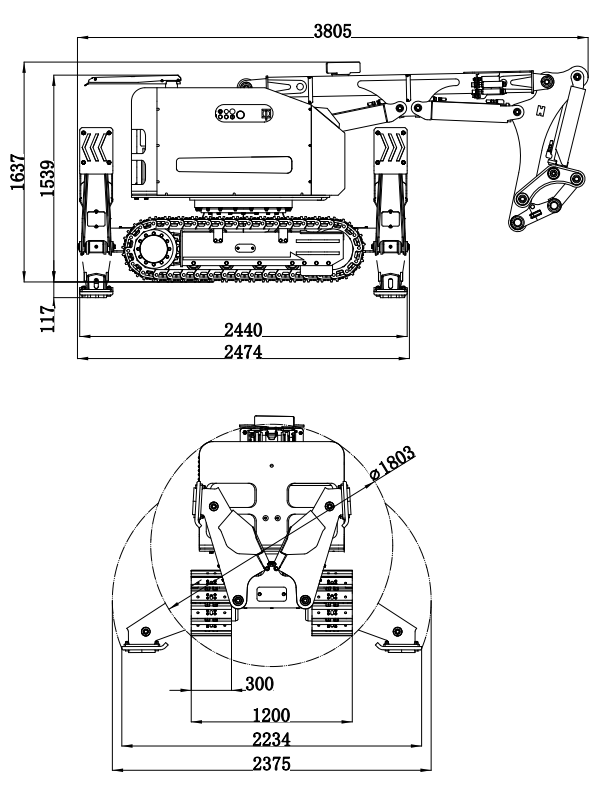

Size:
