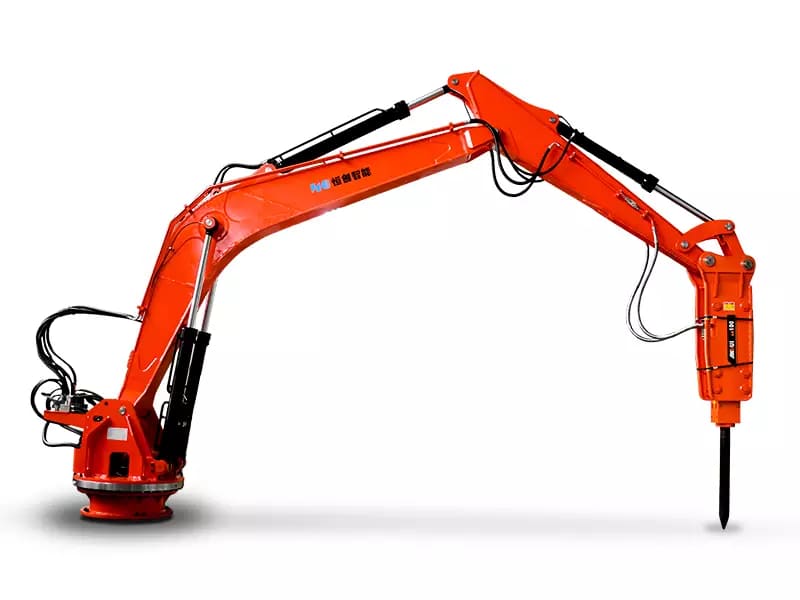

HCBM-2015-D Pedestal Rockbreaker Boom System
Item No :
HCBM-2015-D
Reach:
5,300 kg
Working depth:
30/37/55 kW
Hammer model:
0–100 L/min
HPU power:
Steel bracket wooden cases
Swing / rotation angle:
1 year
CATEGORIES
how can we help you
You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.
Contact usThe HCBM-2015-D pedestal rock breaker boom system engineering robotic arm uses the impact force of a hammer and drill rod to break large, hard materials. HCBM-2015-D has a large crushing range. Capable of reaching a maximum distance of 6 meters for crushing work. Rock Breaker Machine unblocks and crushes material blockages at various crusher inlet ports, chutes, screening ports, loading and unloading stations in mines and gravel aggregates. Of course, including the nuclear industry or special high-risk industries to carry out remote crushing, grasping, cutting, etc. 2015-D stationary rock breaker has always received unanimous praise.
The HCBM-2015-D Pedestal Boom System integrates advanced machinery, electricity and hydraulics into a durable system with multiple safety mechanisms. Hydraulically driven for environmentally-friendly high efficiency, its high power rating enables continuous heavy-duty operation. Interchangeable attachments facilitate multi-functional uses like crushing, clamping, shoveling, grabbing, excavating, hooking and prying. Its reinforced cylinders and high-strength steel construction withstand extreme, hazardous conditions.
Key Features:
- Hydraulically driven with high efficiency and environmental friendliness.
- High power and high safety. The hydraulic system provides stable and powerful mechanical energy. Multiple safety mechanisms ensure safe operation.
- Multi-functional. Interchangeable attachments enable various functions like crushing, clamping, shoveling, grabbing, excavating, hooking, lifting and prying.
- Heavy-duty and durable. High strength steel and reinforced hydraulic cylinders allow continuous operation in extreme conditions.
Application industries
1.Applications in the open-pit mining industry: various types of mine ore operating stations, rotary crushers, grid material blocking secondary crushing；
2.Application in the underground mining industry: secondary crushing treatment of blockage at the grid of various underground mines and silos；
3.Sand and gravel aggregate industry: crushing station of sand and gravel aggregate plant, blocking secondary crushing and material blocking cleaning at the mouth of the broken silo；
4.Crusher inlet: rotary breaking, jaw breaking and other types of crushers, crushing station warehouse inlet, secondary crushing；
5.Metallurgical foundries: all kinds of smelters roughly crush large pieces of smelted materials, shell, dismantle bricks, and unpack ladles; operate remotely in a high temperature and dust environment.
Operation mode: Stationary rock breaker has a variety of control methods such as on-site operation console, operation cab, wireless remote control, remote control operation, etc. to choose from.
Attachments: Rock Breaker Systems can realize the free switching of a variety of attachments, with various functions such as crushing, pliers, shoveling, grabbing, digging, hooking, picking, and scratching, etc.
A solution for automation in labor-intensive industries, the HCBM-2015D prevents clogs in large crushers, mills and hoppers. In steel plants and mines it dismantles structures and crushes ore chunks, improving material flow and safety. Mounted on fixed bases or mobile equipment, the HCBM-2015-D operates dependably in demanding environments.Reliable and adaptable, the robust 2015-D Heavy Duty Rock breaker enhances productivity for applications like mining, cement production, demolition, and emergency response. Its heavy-duty and versatile design is suitable for clearing oversized materials, facilitating hazardous processes, and handling dangerous goods.
| Performance | |
| Weight of machine excluding attachment | 3400 kg |
| Main arm length | 2500 mm |
| Second arm length | 1500 mm |
| Machine height | 3940 mm |
| Oil cylinder | Double swing oil cylinder |
| Slewing degrees | 150° |
| Hydraulic system | |
| Pump type | Axial piston variable displacement pump |
| Pump flow | 0-100 L/min |
| System pressure | 21 MPa |
| Hydraulic oil tank capacity | 370 L |
| Dynamical System | |
| Drive Type/Model | Motor Drive/AC380 V, 50 Hz |
| Power/Speed | 37 kW |
| Current/Voltage | 380 V |
| Workspace Level | |
| Working height, max. | 5826 mm |
| Working depth, max. | 4000 mm |
| Working radius, max. | 6045 mm |
| Vertical working radius, max. | 4039 mm |
| Vertical working radius, min. | 1239 mm |
|
